Запчасти Case IH PUMA 155 (1.40.1/02[01]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND STEERING SENSOR - STEERING KNUCKLES AND HUBS (04) - FRONT AXLE & STEERING

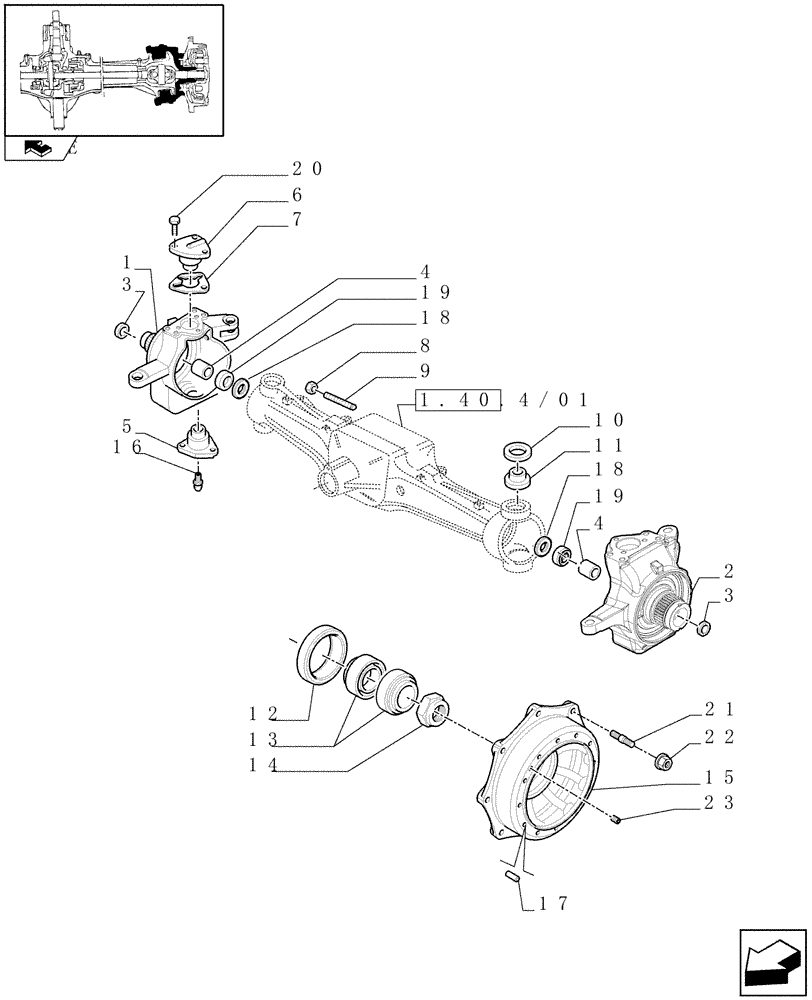

Схема запчастей Case IH PUMA 155 - (1.40.1/02[01]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK AND STEERING SENSOR - STEERING KNUCKLES AND HUBS (04) - FRONT AXLE & STEERING
2
9
23
13
11
5
8
22
21
home
17
1.40.4/01
10
4
15
18
12
1
19
4
20
18
3
16
7
6
3
14
19

Артикул

Название

Примечание

Количество

1

87330073

STEERING KNUCKLE

RH, Incl.3,4

1шт.

2

87330054

STEERING KNUCKLE

LH, Incl.3,4

1шт.

3

87592390

BUSHING,53mm ID x 68mm OD x 7.7mm L

2шт.

4

87660602

BUSHING,52mm ID x 56mm OD x 28mm L

56 x 52 x 28

2шт.

5

87333763

BALL STUD

BALL PIN

2шт.

6

87361688

BALL STUD

BALL PIN

1шт.

7

5137456

SHIM,56.5mm ID x 97mm OD x 0.1mm Thk

1шт.

7

5137459

SHIM,56.5mm ID x 97mm OD x 0.25mm Thk

0.10MM

1шт.

7

5137457

SHIM,56.5mm ID x 97mm OD x 0.15mm Thk

1шт.

7

5137460

SHIM,56.5mm ID x 97mm OD x 0.3mm Thk

0.15MM

1шт.

7

5137458

SHIM,56.5mm ID x 97mm OD x 0.2mm Thk

0.20MM

1шт.

8

10717624

THIN NUT,Thin, M18 x 2.5, Cl 05

2шт.

9

87471124

STUD,M18

2шт.

10

5121471

SEAL,56mm ID x 70mm OD x 7.5mm Thk

3шт.

11

5119699

SPHERICAL BEARING,30.16mm ID x 64.29mm OD x 21.43mm W

3шт.

12

87349641

OIL SEAL,150mm ID x 180mm OD x 14.5/16mm Thk

150 x 180 x 14.5-16

2шт.

13

5133737

ROLLER BEARING,109.5mm ID x 158.75mm OD x 23mm W

109.538 x 158.750 x 23.02

4шт.

14

5141692

NUT,M90 x 2

2 M90 x 2

2шт.

15

87473598

HUB

Incl. 17, Serial Range: -C6683

2шт.

15

84270400

HUB

Incl. 17, Start Serial: D6683

2шт.

16

13407211

LUBE NIPPLE,M10 x 1

3шт.

17

4985063

DOWEL,12mm OD x 20mm L

2шт.

18

87598114

SPACER,53.00mm ID x 78.00mm OD x 4.00mm

53 x 78 x 4

2шт.

19

87397905

OIL SEAL,52.00mm ID x 72.00mm OD x 16.50mm

52 x 72 x 16.5

2шт.

20

14274534

LOCK BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9, Full Thd

12шт.

21

87618916

STUD

16шт.

22

87678013

NUT,M16 x 1.5

16шт.

23

87671955

CAP,15.50mm ID x 22.00mm OD x 40.00mm

32шт.

Выбрано товаров: 28
