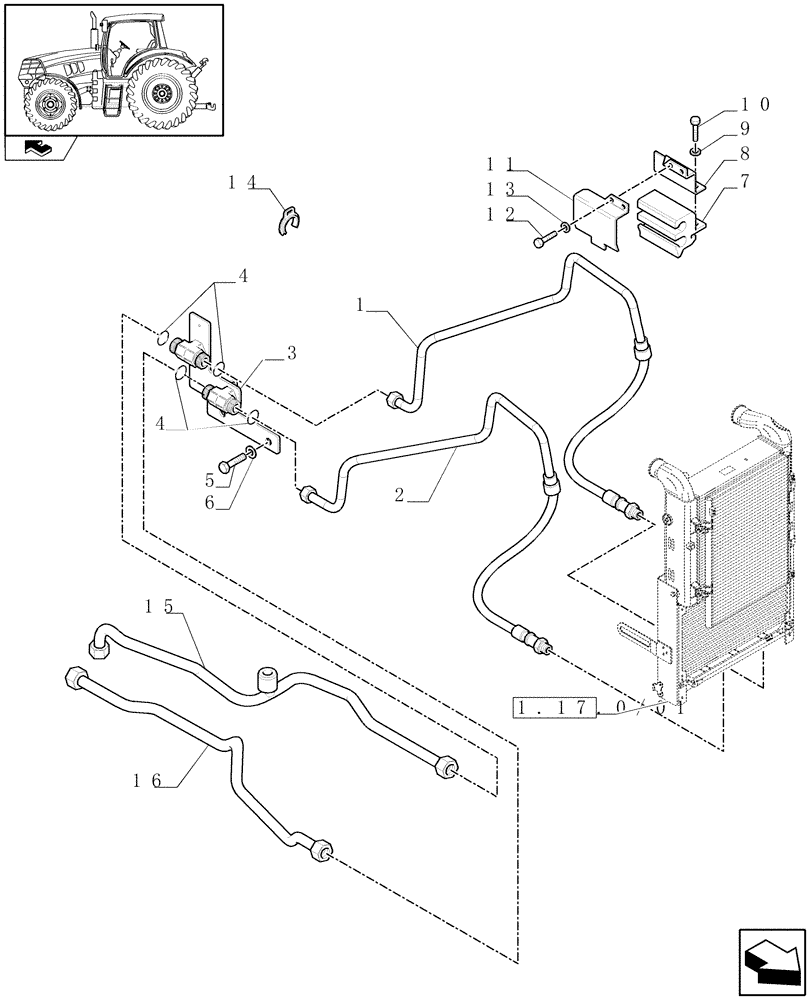

Запчасти Case IH PUMA 155 (1.29.7/01[05]) - FULL POWER SHIFT - TRANSMISSION OIL COOLER - PIPES (03) - TRANSMISSION

1

84121137

HYD TUBE,18 mm OD, 835.6, 740 mm Length

1шт.

2

84121138

HYD TUBE,18 mm OD, 920, 75 mm Length

1шт.

3

84136405

HOLDER

Incl. 4

1шт.

4

81825117

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

5

11112421

SCREW,Hex, M12 x 30mm, Cl 8.8

3шт.

6

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

7

84121136

SUPPORT

1шт.

8

87579221

PLATE

1шт.

9

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

10

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

11

87484736

COVER

1шт.

12

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

13

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

14

87363477

CLIP

2шт.

15

87583750

HYD TUBE,17 mm ID x 20 mm OD x 854, 384 mm L

1шт.

16

87658923

HYD TUBE

1шт.
