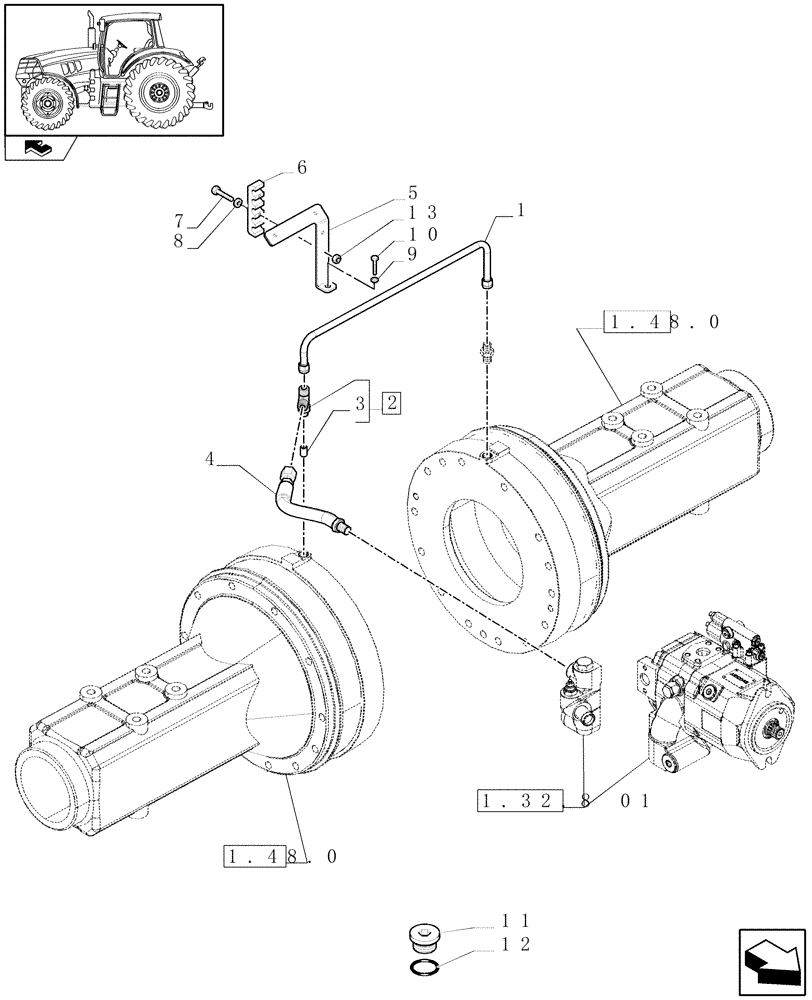

Запчасти Case IH PUMA 155 (1.29.7/01[03]) - BRAKE LUBRICATION PIPES (03) - TRANSMISSION

1

87722393

PIPE

1шт.

Left Brake Lubrication

1шт.

2

87722406

HYD CONNECTOR

1шт.

3

NSS

NOT SOLD SEPARAT

1шт.

4

87722392

HOSE,13mm ID x 267mm L, SAE 100R3

Brake Lubrication

1шт.

5

87630862

SUPPORT

1шт.

6

87723144

BRACKET

1шт.

7

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

8

14496421

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

2шт.

9

12638621

WASHER,M10 x 18 x 2

1шт.

10

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

11

11903011

PLUG,M10 x 1 x 11, Cl5.8

1шт.

12

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

13

12574211

NUT,M6 x 1, Cl 8

1шт.
