Запчасти Case IH PUMA 155 (1.29.6/01[03]) - FULL POWER-SHIFT TRANS. 18X6 AND 19X6 - LOW PRESSURE GEARBOX CONTROL PIPES (VAR.330285) (03) - TRANSMISSION

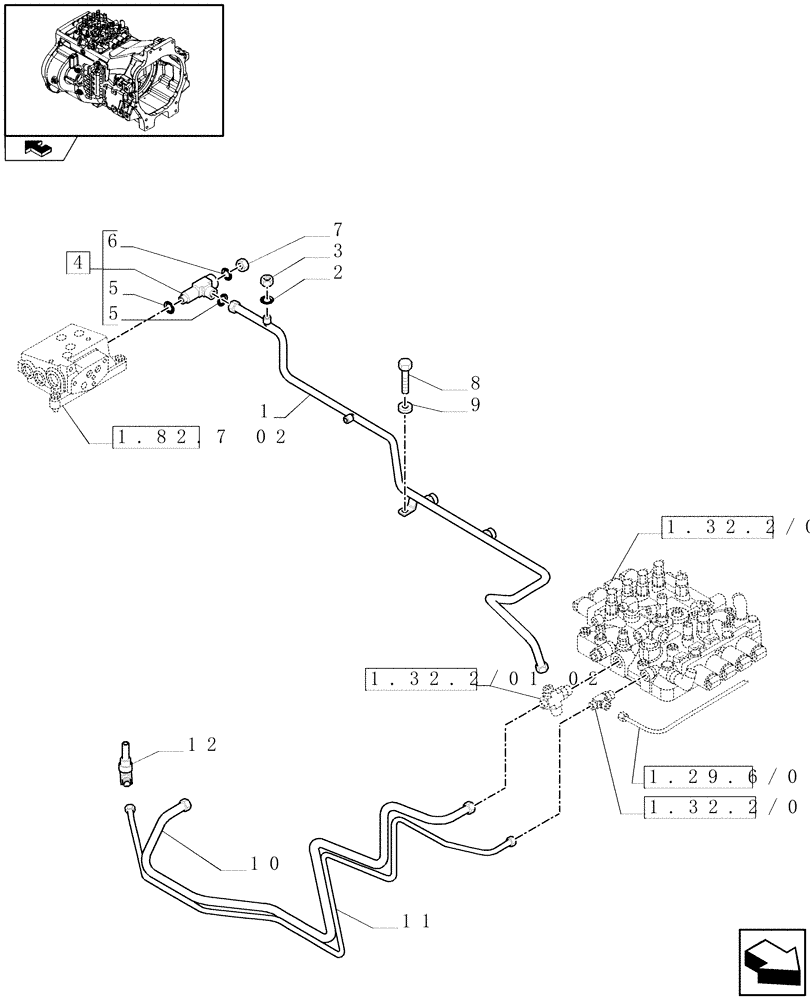

Схема запчастей Case IH PUMA 155 - (1.29.6/01[03]) - FULL POWER-SHIFT TRANS. 18X6 AND 19X6 - LOW PRESSURE GEARBOX CONTROL PIPES (VAR.330285) (03) - TRANSMISSION
4
11
3
9
6
2
10
1.32.2/01 02
home
1.29.6/01 04
1.82.7 02
1.32.2/01 01
1.32.2/01 02
5
8
12
7
5
1

Артикул

Название

Примечание

Количество

1

87660987

TUBE,16 mm OD x 1190.3, 309.7 mm L

1шт.

From PC Port to Rear Remote Control Valves

1шт.

2

13550421

WASHER,10.2mm ID x 20mm OD x 2mm Thk

1шт.

3

5189973

PLUG

1шт.

4

87571078

HYD CONNECTOR,1"-14 x 1"-14 x M18 x 1.5

1шт.

5

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

6

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

7

83987627

CAP,1-14UN-2A

1шт.

8

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

9

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

10

87519111

PIPE

1шт.

4WD Clutch Supply

1шт.

11

87519117

PIPE

1шт.

Supply to Rear PTO Clutch

1шт.

12

87333802

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

Выбрано товаров: 15
