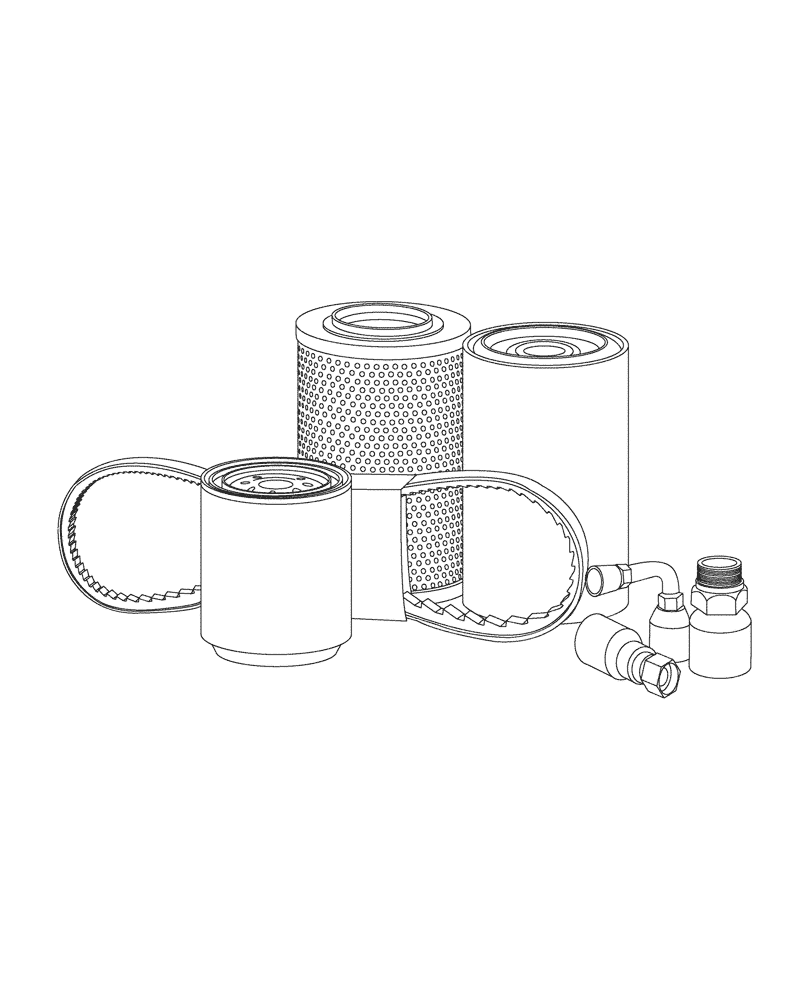

LIST A
Parts Required For Preventative Maintenance
1шт.
1
84228488
ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H
1шт.
2
84226263
HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF
1шт.
3
87605245
POTENTIOMETER,4000 Ohm, 13.5 VDC
1шт.
4
87683000
AIR FILTER,Safety, 108.5mm OD x 403.1mm L
1шт.
5
47617638
FILTER
Element
1шт.
6
87726675
CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper
1шт.
7
87726699
CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper
1шт.
8
84170818
FUEL FILTER,96.2mm OD x 183mm L, M16 x 1.5 - 6H, W/ WIF Sensor (M10)
w/Water Separator, C6577 Engine s/n 710158
1шт.
8
84278636
FUEL FILTER,96.2mm OD x 183mm L, M16x1.5 - 6H, W/ WIF Sensor (M14)
w/Water Separator, D6577 Engine s/n 710159
1шт.
9
84167233
FUEL FILTER,93.53mm OD x 176.4mm L
CNH Branded
1шт.
10
4899178
V-BELT,28.48 mm W x 1550.00 mm L, 8 Ribs
Ribbed
1шт.
11
82034605
AIR FILTER
Element
1шт.
12
82034614
AIR FILTER
1шт.
13
87682992
AIR FILTER,108.5mm OD x 380mm L
Element
1шт.
14
87704248
AIR FILTER,105.9mm ID x 207.6mm OD x 409.5mm L
1шт.
15
87710660
V-BELT,14.04mm W x 1083.00mm L, 4 Ribs
1шт.
16
87710661
V-BELT,3.56 mm W x 990.00 mm L, 4 Ribs
1шт.
17
84229205
V-BELT,28.28 mm W x 1682.50 mm L, 8 Ribs
1шт.
LIST B
Parts Required For Preventative Maintenance And Basic Repair
1шт.
18
2853552
SENSOR
1шт.
18
336430A1
FUEL FILTER
30 Microns, Water Separator
1шт.
Valid with VAR. 330103 - Heavy Duty Fuel Filter
1шт.
19
84322388
THERMOSTAT
1шт.
20
44995162
BULB,T-3 1/4, 12.8V, 50W
1шт.
21
4890193
SENSOR
1шт.
22
4894139
PLUG,Hex Soc, M22 x 1.5
1шт.
23
2859674
SENSOR,Oil Pressure
Sender Unit
1шт.
24
87494632
PRESSURE SWITCH,M12 x 1.5
Relay
2шт.
25
82013124
RELAY,12V, 30A
2шт.
26
82014329
SWITCH
Assy.
1шт.
27
82023238
RELAY,12V, 20A
1шт.
28
82025340
RESTRICTION SWITCH
Vacuum
1шт.
29
47132449
SWITCH
1шт.
30
82028130
PRESSURE SWITCH
1шт.
31
82029621
INDICATOR
Air Cleaner Restrictor
1шт.
32
82030144
IGNITION KEY
2шт.
33
82030798
RELAY,12V, 70A
1шт.
34
82038684
FLASHER UNIT
1шт.
35
87304226
RELAY,12V, Combined, Black
1шт.
36
87577636
FLASHER UNIT
1шт.
37
84174070
FUSE,30A, Orange
2шт.
38
87395493
PRESSURE SWITCH
1шт.
39
87561528
SWITCH ASSY
2шт.
40
87564690
TEMPERATURE SENDER,3/8" - 18
1шт.
41
87564694
PROBE
1шт.
