(1.19.9/03) - PNEUMATIC TRAILER BRAKE - ENGINE GUARDS (VAR.332727-332737-332739)

Запчасти Case IH PUMA 155 (1.19.9/03) - PNEUMATIC TRAILER BRAKE - ENGINE GUARDS (VAR.332727-332737-332739) (02) - ENGINE EQUIPMENT

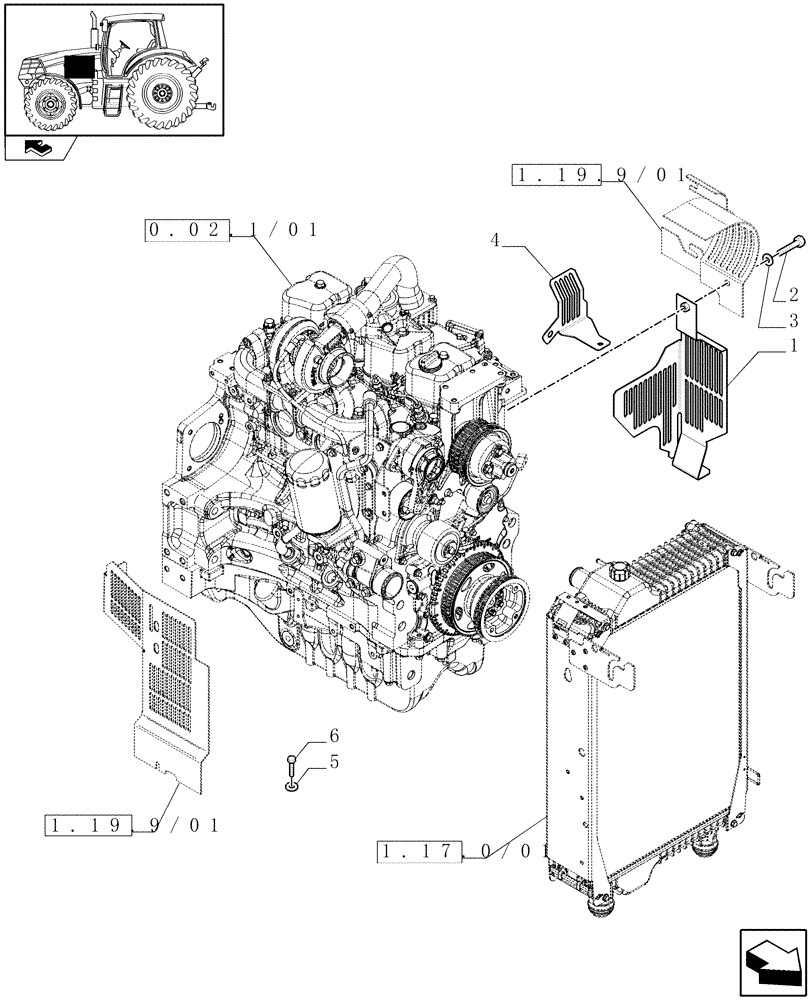

Схема запчастей Case IH PUMA 155 - (1.19.9/03) - PNEUMATIC TRAILER BRAKE - ENGINE GUARDS (VAR.332727-332737-332739) (02) - ENGINE EQUIPMENT
4
3
1.19.9/01
1.17.0/01
0.02.1/01
1.19.9/01
home
2
5
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84138821

GUARD

1шт.

2

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

3шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

4

87541648

GUARD

1шт.

5

84183601

SCREW,M6 x 45mm, Cl 5.8

1шт.

6

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.
