(1.17.2/01[02]) - COOLING - RADIATOR HOSES

Запчасти Case IH PUMA 155 (1.17.2/01[02]) - COOLING - RADIATOR HOSES (02) - ENGINE EQUIPMENT

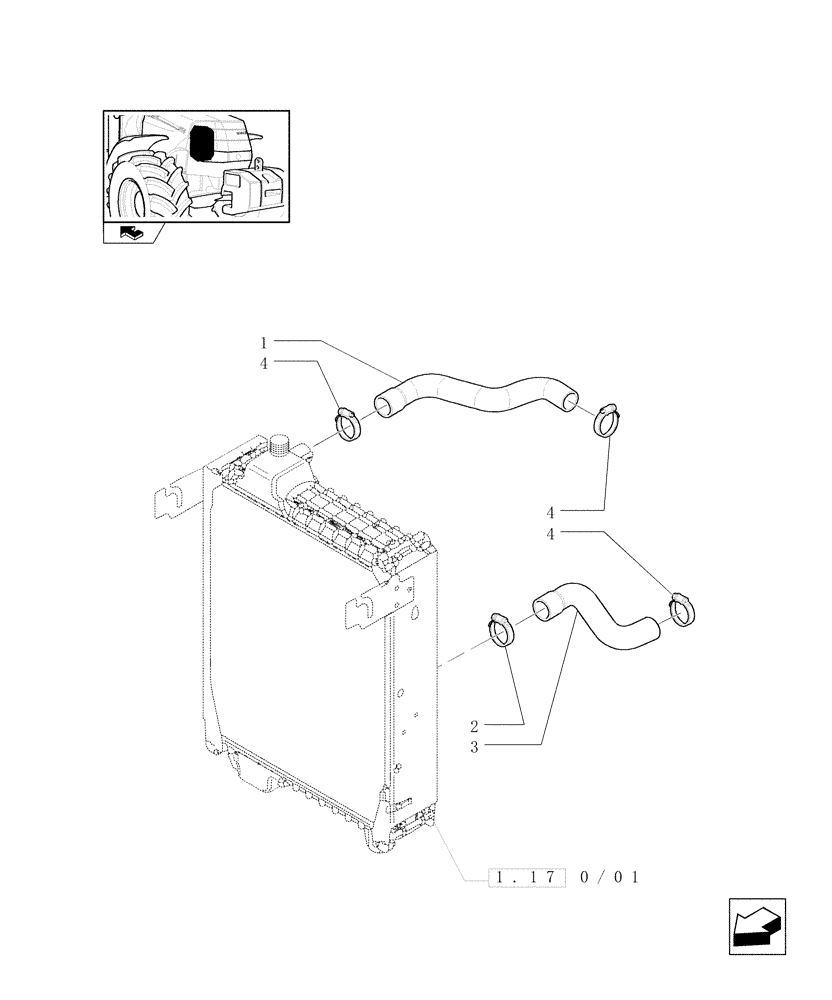

Схема запчастей Case IH PUMA 155 - (1.17.2/01[02]) - COOLING - RADIATOR HOSES (02) - ENGINE EQUIPMENT
home
2
1.17.0/01
4
1
3
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84131328

RADIATOR HOSE,44.45 mm ID, 50.00 mm ID x 800.00 mm, SAE J20R4 CLASS C

1шт.

2

82036351

HOSE CLAMP,50 - 70mm X 14.5mm

50-70

1шт.

3

87719156

RADIATOR HOSE,50.00 mm ID, 58.00 mm ID x 281.00 mm, SAE J20R4 Class C

1шт.

4

87374233

COLLAR CLAMP,40 - 60mm

40-60

3шт.

Выбрано товаров: 4
