Запчасти Case IH PUMA 155 (1.82.715[01A]) - TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS - D5833 (VAR.331723) (07) - HYDRAULIC SYSTEM

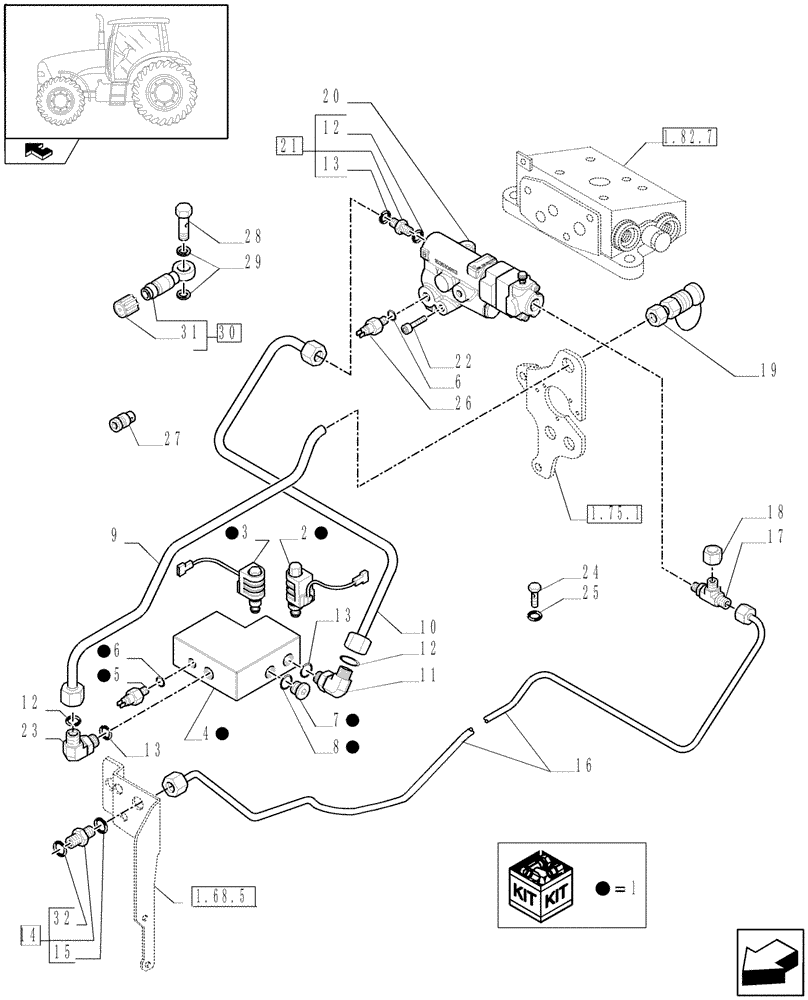

Схема запчастей Case IH PUMA 155 - (1.82.715[01A]) - TRAILER BRAKE VALVE (ITALY) AND ASSOCIATED PARTS - D5833 (VAR.331723) (07) - HYDRAULIC SYSTEM
27
1
21
12
13
6
18
11
1
1
17
16
32
home
10
25
13
22
1
20
8
13
12
9
6
1.82.7
1.75.1
1.68.5
3
1
12
31
23
7
5
15
1
1
4
1
28
29
19
30
2
14
24
1
26

Артикул

Название

Примечание

Количество

1

5196175

BRAKE VALVE

1шт.

2

5177699

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

1шт.

3

5177698

SOLENOID VALVE,12V, 1.6A, 19.2W, 7.5Ohm

1шт.

4

5196170

BLOCK

1шт.

5

5157750

PRESSURE SWITCH

Oil Pressure

1шт.

6

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

7

10118611

PLUG,M12 x 1.5 x 15.00mm, Cl 5.8

1шт.

8

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

9

87660990

TUBE,12 mm OD x 489, 191.5 mm L

, Start Serial: D5833

1шт.

10

87519095

PIPE

1шт.

11

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

1шт.

12

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

3шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

3шт.

14

87711901

HYD CONNECTOR

, Start Serial: D5833

1шт.

15

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

3шт.

16

87680715

BRAKE LINE

, Start Serial: D5833

1шт.

17

87521154

HYD CONNECTOR,M12 x 1, ORB 11/16"-16 ORFS

1шт.

18

47136652

PLUG,11/16"-16 ORFS

11/16''-16

1шт.

19

44015354

QUICK MALE COUPLING

1шт.

20

87516380

BRAKE VALVE

1шт.

21

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

1шт.

22

14306621

HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd

1шт.

22

14359421

HEX SOC SCREW,M8 x 75mm, Cl 8.8

2шт.

23

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

1шт.

24

5197769

BANJO BOLT,M18 x 1.5 x 49mm

1шт.

25

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

26

87604423

SWITCH ASSY

Pressure, Trailer Brake, 15 Bar

1шт.

27

47131575

VALVE PRESSURE RELIE

1шт.

28

5121685

BANJO BOLT,M12 x 1.5 x 23mm

1шт.

29

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

M12

2шт.

30

82030175

BANJO FITTING,M8 x 1 x 53mm

1шт.

31

44995074

PLUG,M8 x 1.0

1шт.

32

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

, Start Serial: D5833

1шт.

Выбрано товаров: 33
