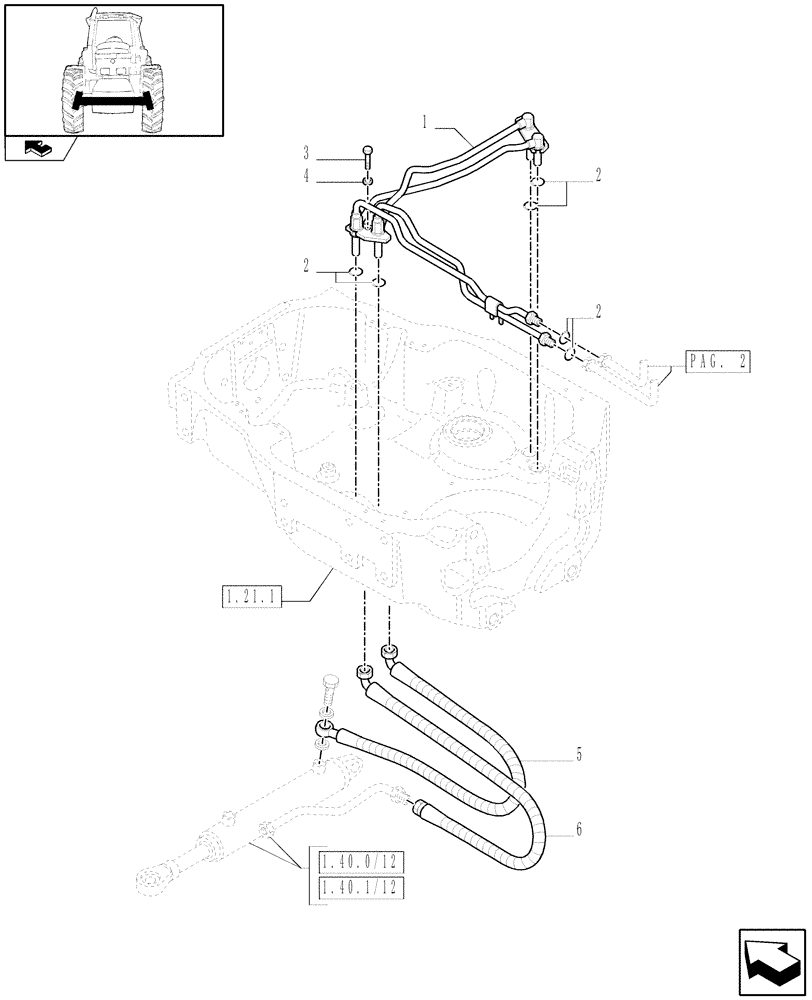

Запчасти Case IH PUMA 155 (1.42.0[01]) - POWER STEERING DELIVERY AND RETURN PIPES (04) - FRONT AXLE & STEERING

1

87387916

PRESSURE PIPE

Incl. 2, Serial Range: -C6720

1шт.

1

87699815

HYDRAULIC HOSE

Incl. 2, Start Serial: D6720

1шт.

2

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

6шт.

3

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

4

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

5

87635653

HOSE,675.00mm

RH

1шт.

Bolt and washer shown in ghost -----is 4864083 banjo bolt and 44906168 seal

1шт.

5

87644884

HOSE,675.00mm

LH

1шт.

6

87352542

HOSE,550.00mm

2шт.
