Запчасти Case IH PUMA 155 (1.40. 8/05[01A]) - (CL.3) SUSPENDED FRONT AXLE WITH DOG CLUTCH AND STEERING SENSOR - SUPPORT - D5954 (VAR.330414) (04) - FRONT AXLE & STEERING

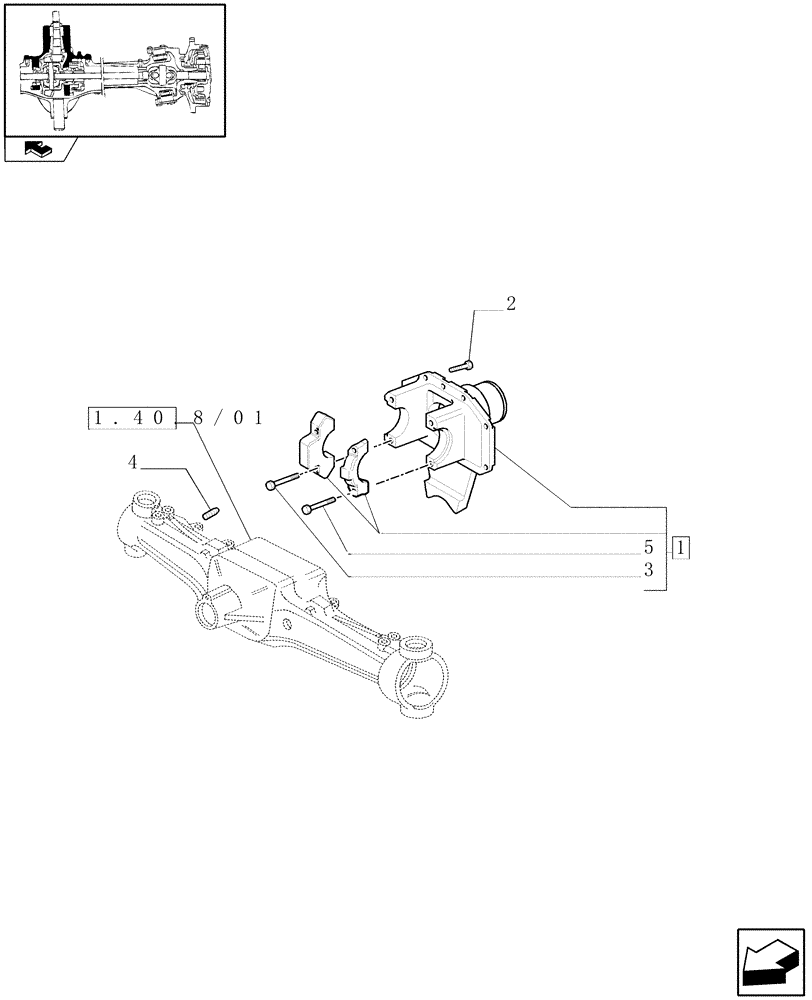

Схема запчастей Case IH PUMA 155 - (1.40. 8/05[01A]) - (CL.3) SUSPENDED FRONT AXLE WITH DOG CLUTCH AND STEERING SENSOR - SUPPORT - D5954 (VAR.330414) (04) - FRONT AXLE & STEERING
1
1.40.8/01
5
home
4
2
3

Артикул

Название

Примечание

Количество

1

87492294

SUPPORT

ASSY

1шт.

2

14313731

SCREW,M6 x 1.5 x 40mm

4шт.

3

14275334

BOLT,Lock, Hex, M12 x 1.25 x 70mm, Cl 10.9

2шт.

4

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

1шт.

5

14276934

BOLT,Hex, M12 x 1.25 x 78mm, Cl 10.9

M12 x 1.25 x 70

2шт.

Выбрано товаров: 5
