Запчасти Case IH PUMA 155 (1.40. 3/14[03B]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - PIPES - D6089 (VAR.330426) (04) - FRONT AXLE & STEERING

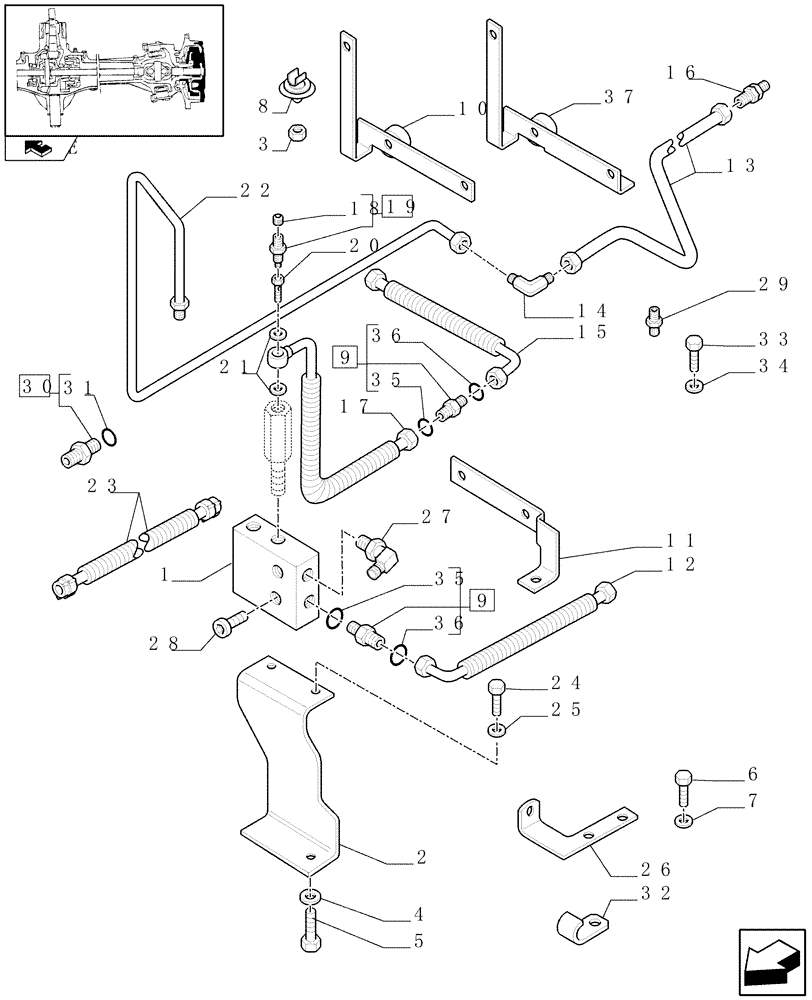

Схема запчастей Case IH PUMA 155 - (1.40. 3/14[03B]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - PIPES - D6089 (VAR.330426) (04) - FRONT AXLE & STEERING
30
12
18
9
7
27
5
15
16
36
11
28
37
10
29
3
25
35
32
35
2
26
31
home
4
22
1
17
8
6
36
21
13
9
34
20
24
19
23
33
14

Артикул

Название

Примечание

Количество

1

47131070

BRAKE VALVE

ASSY

1шт.

2

87735744

BRACKET

1шт.

3

14059211

FLANGE NUT,M6 x 1, Flg, Cl 8

M6

2шт.

4

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

5

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

1шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

8

87609144

CLIP,6mm Hose

1шт.

9

82019693

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORFS

2шт.

10

87609143

SUPPORT

, Serial Range: -C6680

1шт.

11

87326927

BRACKET

1шт.

12

87534241

HOSE

Feed

1шт.

13

87607314

HYD TUBE,4.58 mm ID x 689, 45 mm L

1шт.

14

87366955

HYD CONNECTOR

7/16

1шт.

15

87609294

FLEXIBLE HOSE,590.00mm

1шт.

16

82016624

ADAPTER

1шт.

17

87547658

HOSE

Cyl to Front Brakes

1шт.

18

81871475

CAP,4.7mm ID x 13mm OD x 10mm L

1шт.

19

81874592

BLEEDER,M12 x 1 x 15.50mm

1шт.

20

82018915

BANJO BOLT,M12 x 1 x 23mm

1шт.

21

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

M12

2шт.

22

87735742

TUBE,6 mm OD x 590 mm L

1шт.

23

87534910

HOSE

Return

1шт.

24

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

2шт.

25

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

26

87713126

BRACKET

1шт.

27

82037643

HYD CONNECTOR

1шт.

28

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

2шт.

29

82029114

FITTING,M16 x 1.5 x 51mm L

1шт.

30

82015298

HYD CONNECTOR,1/2"-20 - M18 x 1.5

1шт.

31

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

32

81822024

CLIP

1шт.

33

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

34

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

35

82019811

SEAL,11.6mm ID x 16.5mm OD x 1.5mm Thk

2шт.

36

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

37

84261946

SUPPORT

, Start Serial: D6680

1шт.

Выбрано товаров: 37
