Запчасти Case IH PUMA 155 (1.40. 3/14[03]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - PIPES - C6366 (VAR.330426) (04) - FRONT AXLE & STEERING

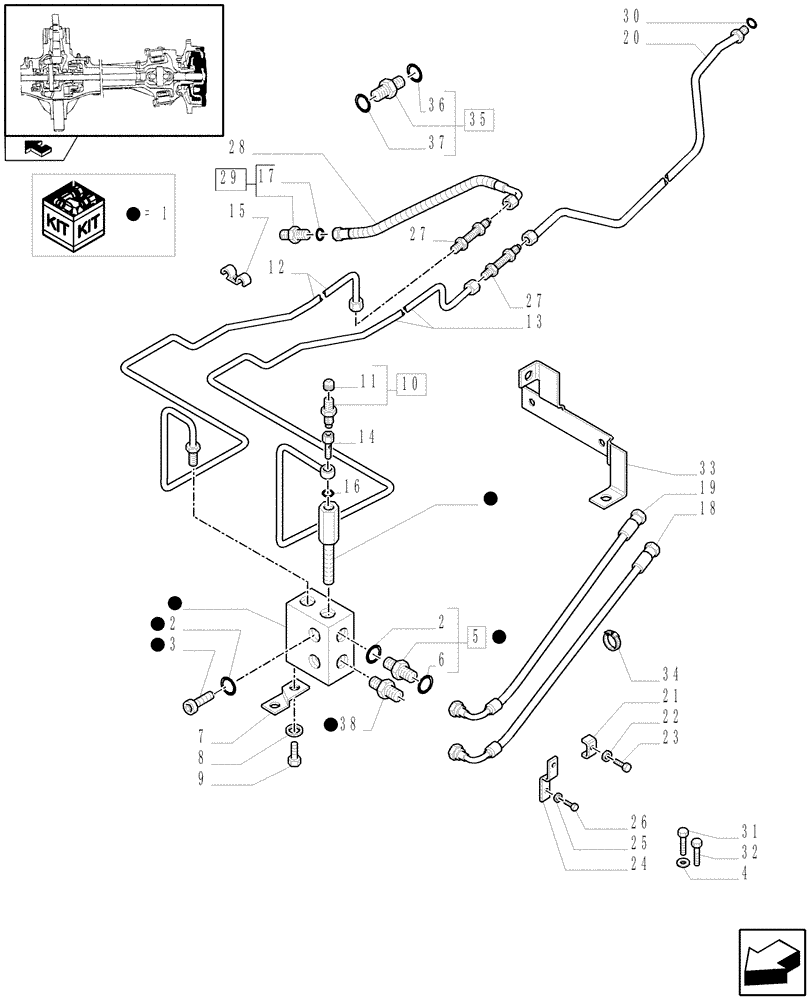

Схема запчастей Case IH PUMA 155 - (1.40. 3/14[03]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - PIPES - C6366 (VAR.330426) (04) - FRONT AXLE & STEERING
1
27
9
4
38
1
11
19
32
21
1
34
20
33
2
36
8
31
23
18
30
17
1
26
24
10
home
13
6
25
7
3
27
16
12
5
2
22
37
15
28
29
1
35
1
1
14

Артикул

Название

Примечание

Количество

1

87541730

BRAKE VALVE

ASSY

1шт.

2

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

3

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

2шт.

4

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

11/16-16

1шт.

6

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

7

87539520

BRACKET

1шт.

8

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

9

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

10

81874592

BLEEDER,M12 x 1 x 15.50mm

1шт.

11

81871475

CAP,4.7mm ID x 13mm OD x 10mm L

1шт.

12

87539215

RIGID TUBE,4.58 mm ID x 536, 234 mm L

1шт.

13

87539233

RIGID TUBE,4.58 mm ID x 665, 335 mm L

1шт.

14

82018915

BANJO BOLT,M12 x 1 x 23mm

1шт.

15

82036872

CLAMP

2шт.

16

5155678

GASKET,12.2mm ID x 17mm OD x 5mm Thk

12x17x5

1шт.

17

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

15.7 x 20.9 x 1.5

1шт.

18

87544004

HOSE

Feed, 3000MM

1шт.

19

87544003

HOSE

Return, 3000MM

1шт.

20

87539234

TUBE,4.58 mm ID x 1058, 657 mm L

1шт.

21

82034363

CLAMP

4шт.

22

14496404

WASHER,M6 x 12 x 2 Thk

4шт.

23

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

4шт.

24

82034365

BRACKET

2шт.

25

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

26

14301824

HEX SOC SCREW,M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

27

82016624

ADAPTER

2шт.

28

82016545

BRAKE LINE

1шт.

29

82015298

HYD CONNECTOR,1/2"-20 - M18 x 1.5

M18x15, 1/2-20

1шт.

30

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

D=12

2шт.

31

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

M8 x 16

3шт.

32

10979221

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8

2шт.

33

87541603

BRACKET

1шт.

34

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

2шт.

35

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

36

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

37

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

38

47131072

HYD CONNECTOR

1шт.

Выбрано товаров: 38
