Запчасти Case IH PUMA 155 (1.40. 3/14[02]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - PIPES (VAR.330426) (04) - FRONT AXLE & STEERING

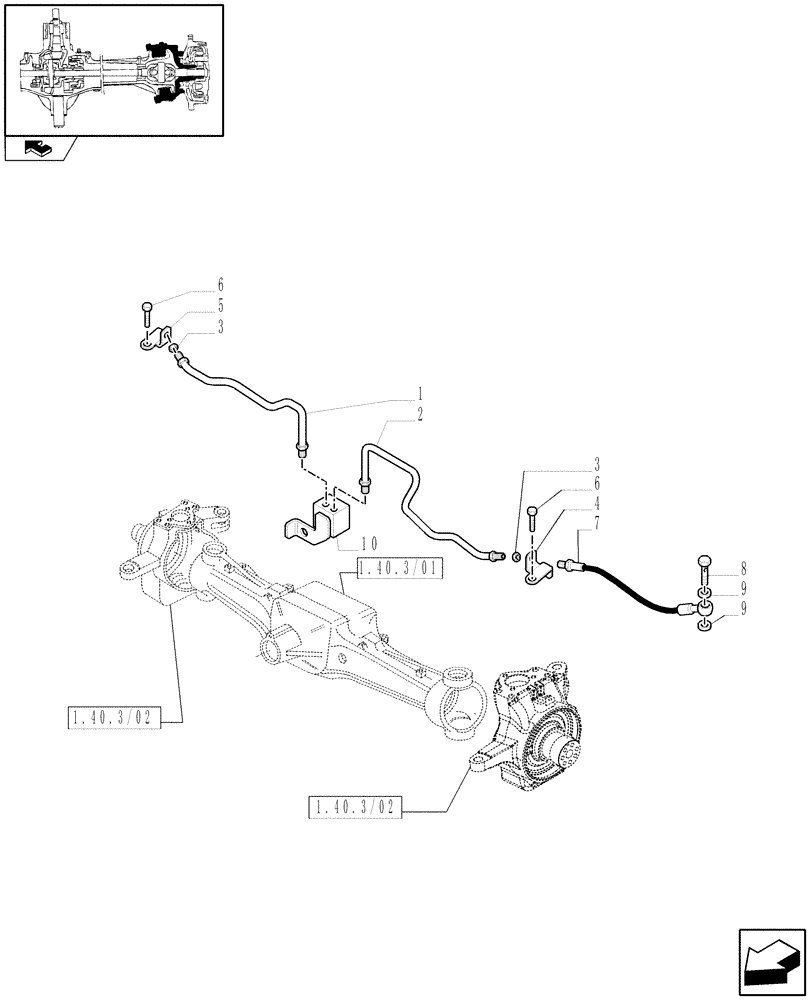

Схема запчастей Case IH PUMA 155 - (1.40. 3/14[02]) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - PIPES (VAR.330426) (04) - FRONT AXLE & STEERING
6
9
10
9
6
2
7
1.40.3/02
1.40.3/02
1.40.3/01
home
4
3
1
3
5
8

Артикул

Название

Примечание

Количество

1

87587725

BRAKE LINE

RH

1шт.

2

87587713

BRAKE LINE

LH

1шт.

3

10718114

THIN NUT,Thin, M16, 1.00mm Pitch, Cl 04, DAC

2шт.

4

87571108

BRACKET

LH

1шт.

5

87571109

BRACKET

RH

1шт.

6

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

5155700

HOSE,4.75mm ID x 315.00mm

295MM

2шт.

8

5155703

BANJO BOLT,M12 x 1.25 x 22mm

M12x1.25x22

2шт.

9

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

12MM

4шт.

10

87611523

BRACKET

1шт.

Выбрано товаров: 10
