Запчасти Case IH PUMA 155 (1.40. 1/04) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - LINK (04) - FRONT AXLE & STEERING

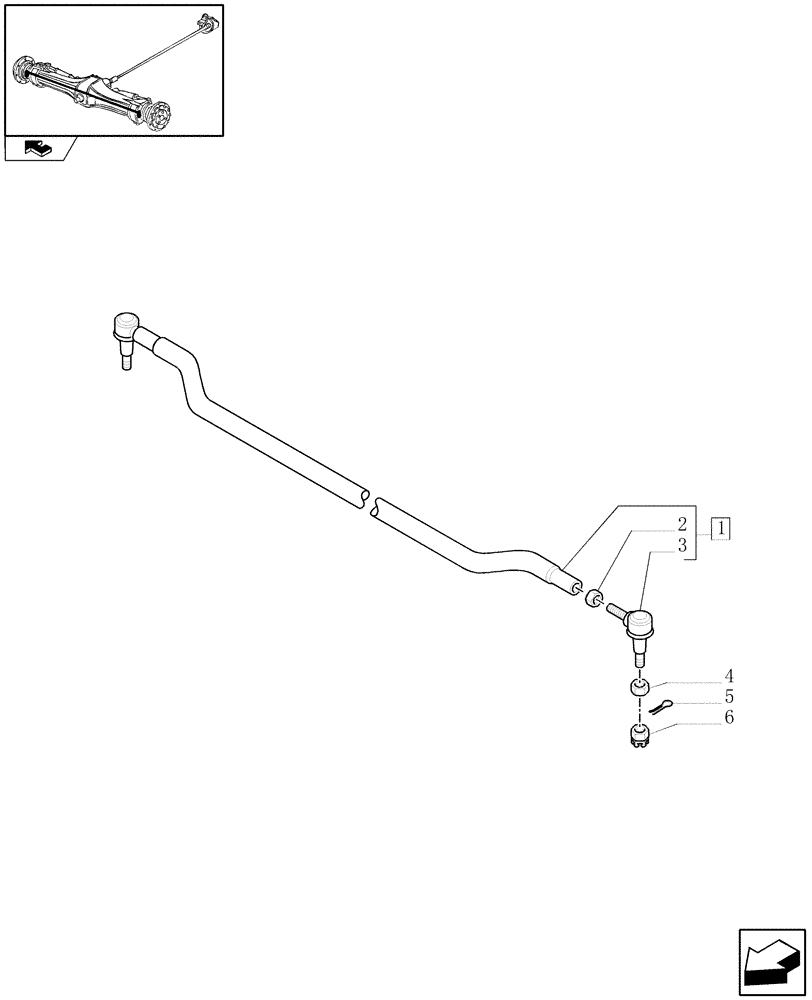

Схема запчастей Case IH PUMA 155 - (1.40. 1/04) - (CL.4) FRONT AXLE W/MULTI-PLATE DIFF. LOCK, ST. SENSOR AND BRAKES - LINK (04) - FRONT AXLE & STEERING
home
4
6
2
3
1
5

Артикул

Название

Примечание

Количество

1

87332622

TRACK ROD ASSY

1шт.

2

10726911

THIN NUT,Thin, M24 x 1.5 x 10.00mm High, ZND

1шт.

3

87395648

BALL JOINT,M24 x 1.25 x 105mm

1шт.

4

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

2шт.

Выбрано товаров: 4
