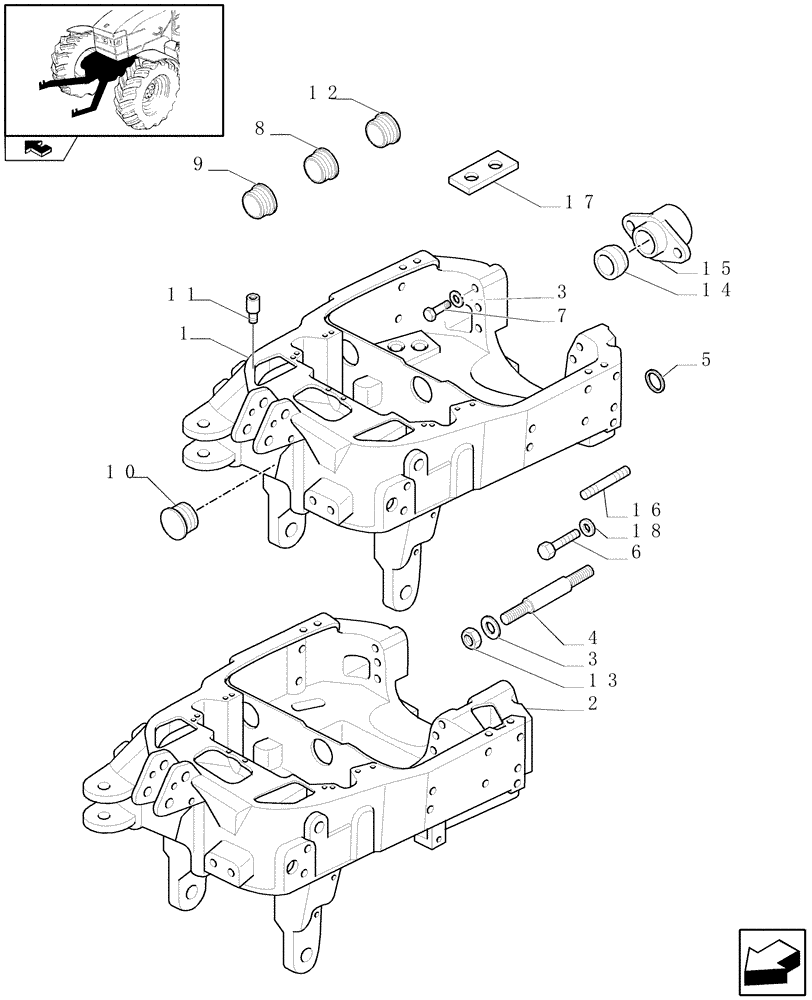

Запчасти Case IH PUMA 155 (1.21.1/03) - INTEGRATED FRONT HPL - AXLE SUPPORT - C6519 (VAR.330831-331831-332831-333831-330847-331847-332847-333847-334847-335847) (04) - FRONT AXLE & STEERING

1

87661567

SUPPORT

1шт.

W/VAR.330831-332831-330847-332847

1шт.

1-35-795-448

BUSHING

2шт.

2

87661568

SUPPORT

1шт.

W/VAR.331831-333831-331847-333847-334847-335847

1шт.

1-35-795-448

BUSHING

2шт.

3

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

1шт.

4

87301866

STUD,M20 x 1.5 x 170mm, Cl 10.9

M20 x 1.5

2шт.

5

82026240

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

5

82026241

SHIM,20.2mm ID x 50mm OD x 4.8mm Thk

1шт.

5

82026242

SHIM,20.2mm ID x 50mm OD x 5.1mm Thk

1шт.

5

82026243

SHIM,20.2mm ID x 50mm OD x 5.4mm Thk

1шт.

5

82026244

SHIM,20.2mm ID x 50mm OD x 5.7mm Thk

1шт.

5

82026245

SHIM,20.2mm ID x 50mm OD x 6mm Thk

1шт.

5

82026246

SHIM,20.2mm ID x 50mm OD x 6.3mm Thk

1шт.

5

82026247

SHIM,20.2mm ID x 50mm OD x 6.6mm Thk

1шт.

5

82026248

SHIM,20.2mm ID x 50mm OD x 6.9mm Thk

1шт.

5

82026249

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

5

82026250

SHIM,20mm ID x 50mm OD x 7.5mm Thk

1шт.

5

82026251

SHIM,20.2mm ID x 50mm OD x 7.8mm Thk

1шт.

6

82035662

DOWEL,M20 x 52

2шт.

W/VAR.331831-333831-331847-333847-334847-335847

1шт.

6

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

W/VAR.331831-333831-331847-333847-334847-335847

1шт.

6

82028028

BOLT,Hex, M20 x 1.5 x 118mm, Cl 12.9

3шт.

7

82029234

BOLT,Hex, M20 x 1.5 x 125mm, Cl 12.9

M20x1.5x125

6шт.

W/VAR.330831-332831-330847-332847

1шт.

8

82023398

PLUG

1шт.

9

82023395

PLUG,60mm ID

2шт.

10

82027992

PLUG,80.00mm, 90.00mm OD, 32.00mm D

1шт.

11

87302865

SET SCREW,M8 x 16mm, Cl 8.8

M8 x 16

2шт.

12

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

13

82023393

LOCK NUT

M20 x 1.5

1шт.

14

82025531

SPACER

2шт.

W/VAR.331831-333831-331847-333847-334847-335847

1шт.

15

82030470

SUPPORT

1шт.

W/VAR.331831-333831-331847-333847-334847-335847

1шт.

16

87333612

STUD,M20 x 1.5 x 295mm, Cl 12.9

M20 x 1.5

3шт.

W/VAR.331831-333831-331847-333847-334847-335847

1шт.

17

87361847

SPACER,111mm L x 26mm W x 10mm Thk

2шт.

W/VAR.330831-332831-330847-332847

1шт.

18

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

W/VAR.331831-333831-331847-333847-334847-335847

1шт.
