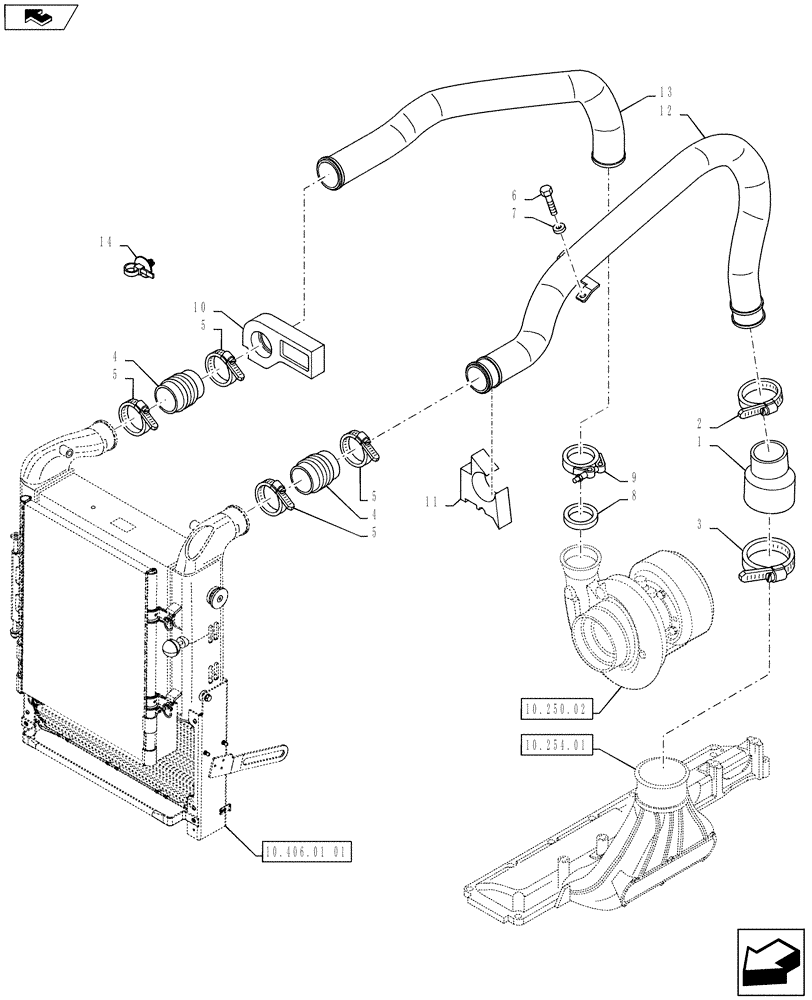

Запчасти Case IH PUMA 145 (10.408.03) - INTERCOOLER AND CONDENSER - PIPES (10) - ENGINE

1

82036507

HOSE,57.10 mm ID, 76.00 mm ID x 94.00 mm, SAE J20R4 Class C

1шт.

2

82036433

CLAMP,57.1mm ID, 12.7mm Bolt Hole, P Type

1шт.

3

82036354

HOSE CLAMP,70mm - 90mm

1шт.

4

87695004

HOSE,57.10 mm ID, SAE J20 R4

2шт.

5

82036351

HOSE CLAMP,50 - 70mm X 14.5mm

4шт.

6

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

7

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

8

14460081

SEALING RING,-142, Cl 7, 2.362" ID x .103" Thk

1шт.

9

87524288

CLAMP,77mm

1шт.

10

84157360

SEAL

1шт.

11

84157359

SEAL

1шт.

12

87542500

PIPE

1шт.

13

87542501

PIPE

1шт.

14

82036503

HOSE,57.10 mm ID x 90.00 mm

1шт.
