(10.406.03) - RADIATOR DUCT AND SEALS

Запчасти Case IH PUMA 145 (10.406.03) - RADIATOR DUCT AND SEALS (10) - ENGINE

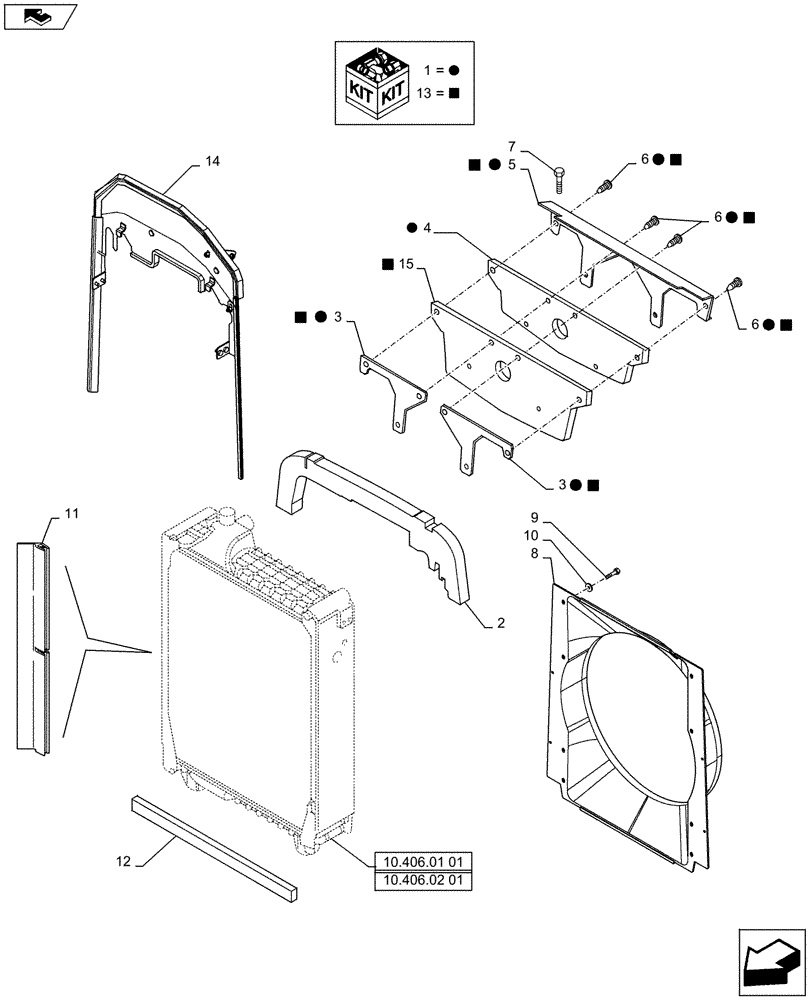

Схема запчастей Case IH PUMA 145 - (10.406.03) - RADIATOR DUCT AND SEALS (10) - ENGINE
3
14
15
13
10.406.01 01
13
1
13
3
1
8
1
1
12
1
11
1
6
13
13
9
13
6
10
4
5
home
13
1
7
2
1
1
13
13
6
10.406.02 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87668400

DEFLECTOR

Incl 3 - 6, Serial Range: -C7146

1шт.

1

84382862

BAFFLE

Incl 3 - 6, Start Serial: D7146

1шт.

2

84187977

GASKET

Puma 160

1шт.

3

87649703

DEFLECTOR

2шт.

4

87668399

FOAM

, Serial Range: -C7146

1шт.

4

NSS

NOT SOLD SEPARAT

Foam, Incl. in 1, Start Serial: D7146

1шт.

5

87649701

DEFLECTOR

1шт.

6

87635853

STUD,7.1mm D

6шт.

7

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

8

87719160

SHROUD

Puma 160

1шт.

8

84137568

SHROUD

Puma 130, 145

1шт.

9

87377778

SCREW,Hex, M6 x 16mm, Cl 8.8

8шт.

10

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.

11

87730096

GASKET

Hood to Radiator Side, LH, Puma 160

2шт.

12

87315613

SEAL,445mm x 20mm x10mm

Radiator to Baffle Plate, Puma 160

1шт.

13

87668401

DEFLECTOR

For Suspended Front Axle, VAR 330414, 330427, 330429, 330430, Incl 3 - 6, Serial Range: -C7146

1шт.

13

84382864

BAFFLE

For Suspended Front Axle, VAR 330414, 330427, 330429, 330430, Incl 3 - 6, Start Serial: D7146

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, Hood, Puma 130, 145

1шт.

15

87649704

FOAM

, Serial Range: -C7146

1шт.

15

NSS

NOT SOLD SEPARAT

Foam, Incl. in 13; For Suspended Front Axle, VAR 330414, 330427, 330429, 330430, Start Serial: D7146

1шт.
