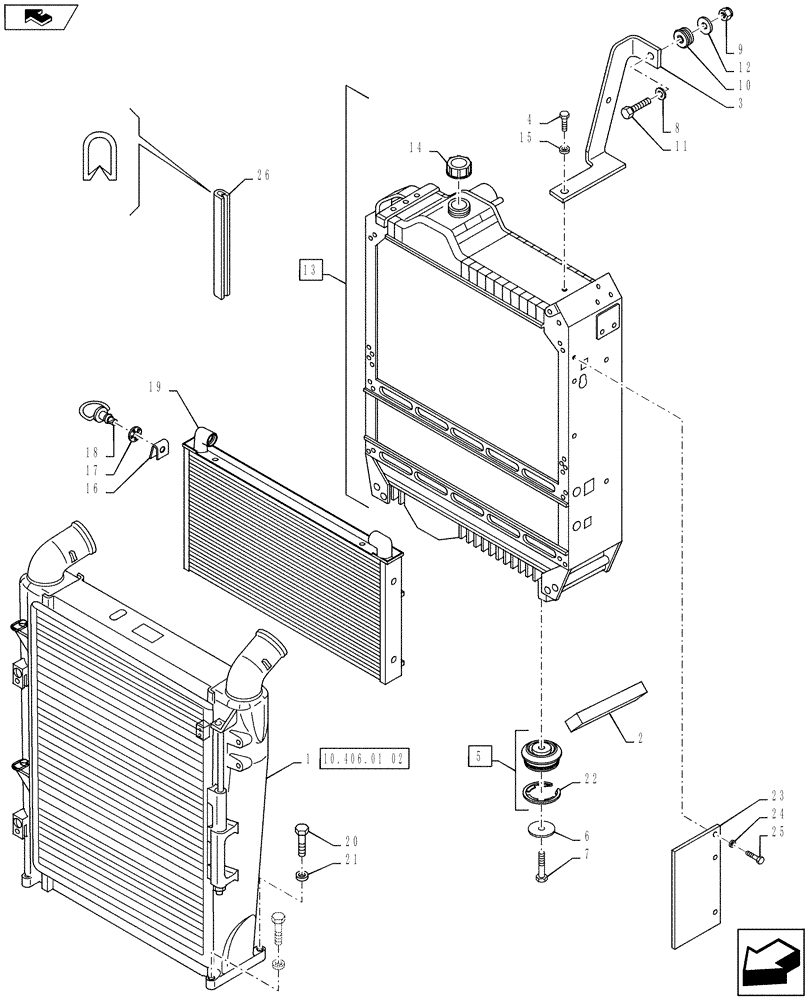

Запчасти Case IH PUMA 145 (10.406.01[01]) - RADIATOR, COOLING SYSTEM & RELATED PARTS (10) - ENGINE

1

84214439

INTERCOOLER

1шт.

2

82030145

FOAM INSULATION

2шт.

3

84155940

BRACKET

1шт.

4

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

5

82023389

ISOLATOR,67mm OD x 35.5mm L

Incl 22

2шт.

6

5102702

WASHER,10.5mm ID x 45mm OD x 3mm Thk

2шт.

7

9602206

SCREW,Hex, M10 x 1.25 x 50mm, Cl 8.8

2шт.

8

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

1шт.

9

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

10

82009429

ISOLATOR

1шт.

11

16040821

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

12

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

1шт.

13

84154109

RADIATOR

6 Row, Incl 14

1шт.

14

87306788

RADIATOR CAP

1шт.

15

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

16

82004582

CLIP,Square, 25mm

1шт.

17

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

1шт.

18

82005454

FASTENER

1шт.

19

84142636

OIL COOLER

1шт.

20

16044121

BOLT,Hex, M8 x 45mm, Cl 8.8

4шт.

21

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

22

82033528

SNAP RING,55mm ID

1шт.

23

84216368

SEAL

Puma 130

2шт.

24

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

Puma 130

4шт.

25

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

Puma 130

4шт.

26

83964601

MOLDING,164mm L

1шт.
