Запчасти Case IH PUMA 145 (90.160.04) - VAR - 330856, 331856, 743686, 330862, 332862, 338851, 332855, 743733, 331553 - CONTROL COVERS - RIGHT SIDE - EHR CONTROL VALVES (90) - PLATFORM, CAB, BODYWORK AND DECALS

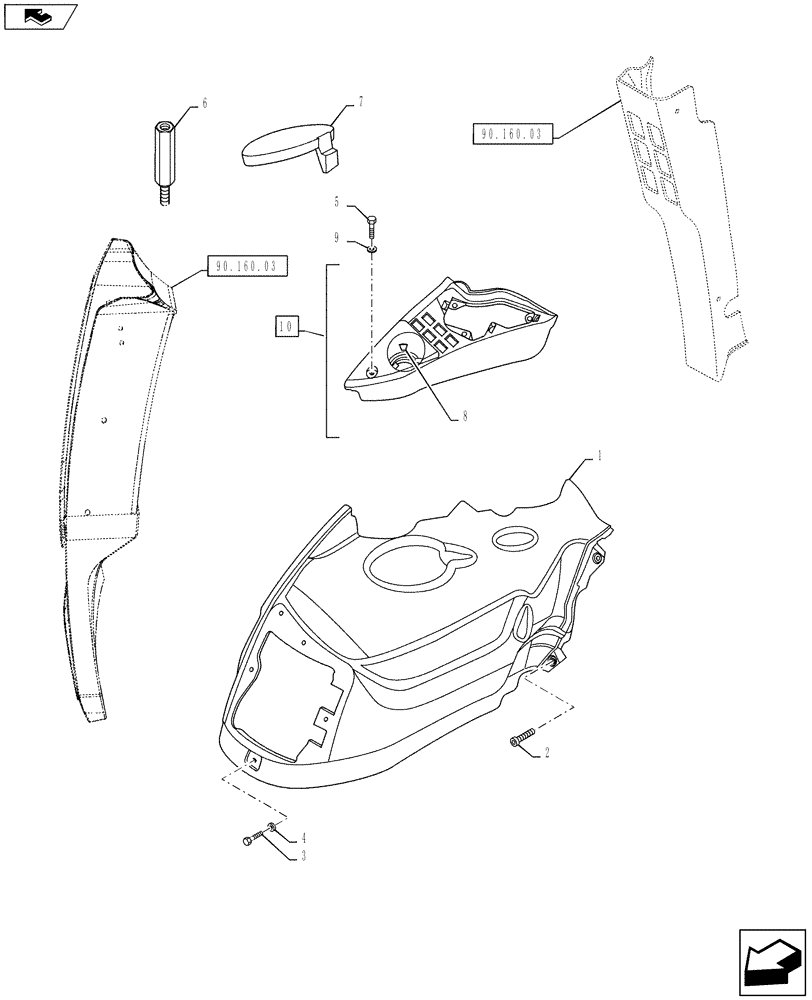

Схема запчастей Case IH PUMA 145 - (90.160.04) - VAR - 330856, 331856, 743686, 330862, 332862, 338851, 332855, 743733, 331553 - CONTROL COVERS - RIGHT SIDE - EHR CONTROL VALVES (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
10
90.160.03
90.160.03
3
4
home
7
5
1
6
2
9

Артикул

Название

Примечание

Количество

1

84242720

TRIM PANEL

RH

1шт.

2

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

2шт.

3

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

4шт.

4

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

5

10558728

SCREW,Flat Hd W/Collar, M6 x 22mm, Cl 8.8

4шт.

6

87493058

SPACER,Hex, M6 x 1 x 47mm L

RH Trim

1шт.

7

87752306

BLANK-OFF PLUG,Grey

1шт.

8

304061A1

BUMPER,Rubber

3шт.

9

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

10

84206691

COVER

Incl 8

1шт.

Выбрано товаров: 10
