Запчасти Case IH PUMA 145 (90.124.02) - VAR - 390709, 333709, 743715, 330709, 332709 - DELUXE SUSPENSION SEAT - COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

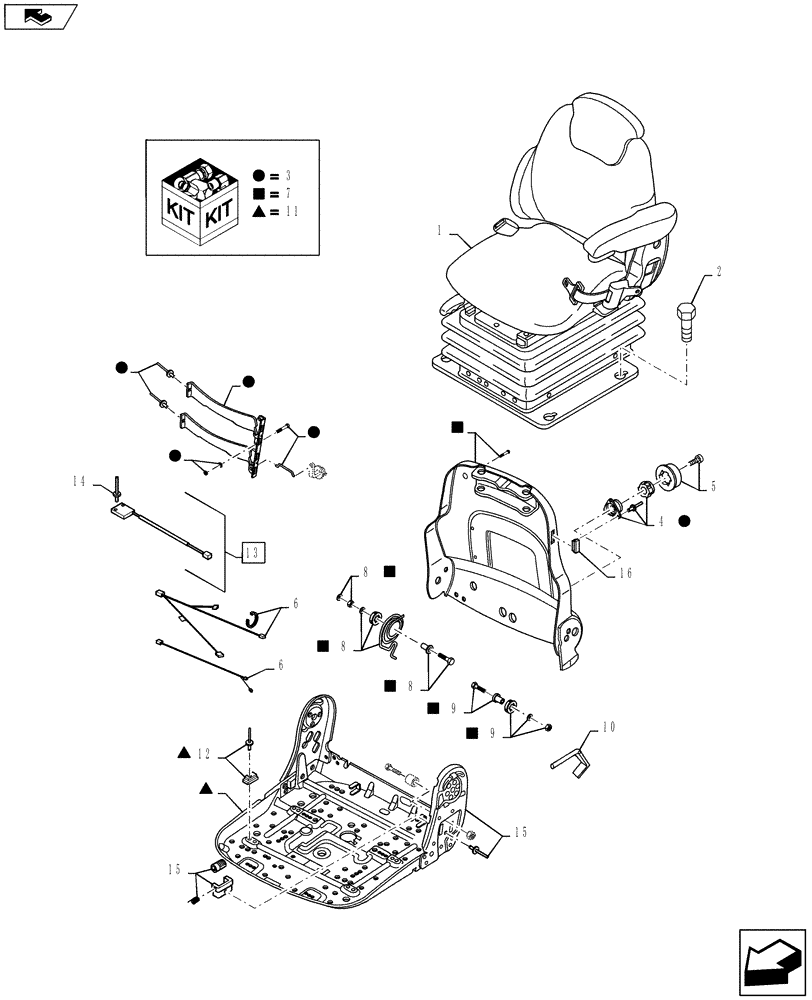

Схема запчастей Case IH PUMA 145 - (90.124.02) - VAR - 390709, 333709, 743715, 330709, 332709 - DELUXE SUSPENSION SEAT - COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
11
13
11
3
7
6
3
2
3
3
9
1
8
7
4
10
7
12
5
11
7
6
7
15
home
8
14
7
16
9
3
7
8
3
15
3
11

Артикул

Название

Примечание

Количество

1

87486984

SEAT

Non-Heated, EHR, STD Build, VAR 390709

1шт.

1

84215889

DRIVER SEAT

Non-Heated, Mech Remotes, VAR 333709

1шт.

1

87486990

SEAT

Heated, EHR, VAR 330709, 743715

1шт.

1

84171102

SEAT

Heated, Mech Remotes, VAR 332709

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

3

345767A1

SUPPORT

1шт.

4

84191199

ACTUATOR

1шт.

5

82034964

HANDLE

1шт.

6

84191186

WIRE HARNESS

Seat Mode Selector, STD Build VAR 390709 and 333709

1шт.

6

84191207

KIT

Harness, Seat Heater, VAR 330709, 743715 and 332709

1шт.

7

84191121

BACKREST

1шт.

8

84191131

SET OF PARTS

1шт.

9

84191196

SET OF PARTS

1шт.

10

82034960

LEVER

1шт.

11

84191188

REPAIR KIT

1шт.

12

84191178

SET OF PARTS

1шт.

13

84191187

SWITCH

Incl 14

1шт.

14

84191201

SET OF PARTS

1шт.

15

82034946

SERVICE KIT

1шт.

16

84223027

SWITCH

Seat Heater, VAR 330709, 743715 and 332709

1шт.

Выбрано товаров: 20
