Запчасти Case IH PUMA 145 (90.118.03) - PROTECTION FOR EXHAUST AND STEP (90) - PLATFORM, CAB, BODYWORK AND DECALS

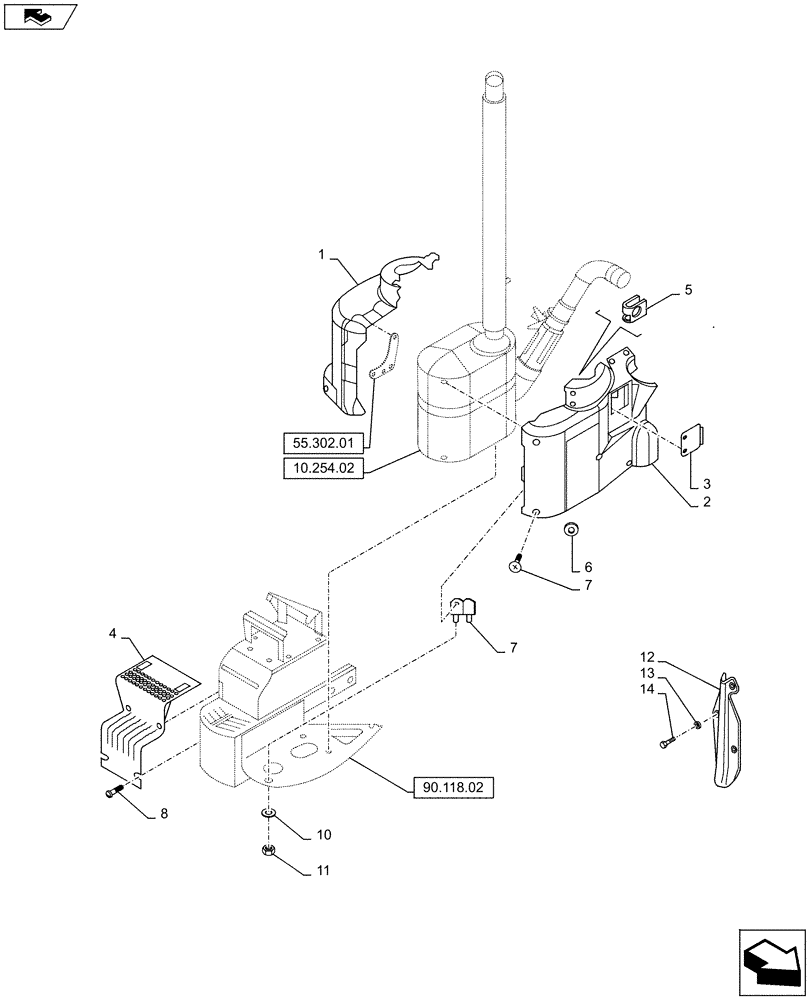

Схема запчастей Case IH PUMA 145 - (90.118.03) - PROTECTION FOR EXHAUST AND STEP (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
4
3
1
2
13
7
8
7
10
55.302.01
12
home
6
14
10.254.02
1
1
90.118.02

Артикул

Название

Примечание

Количество

1

84403572

TRIM PANEL

SCR Canister, Rear

1шт.

2

84403571

PADDING

SCR Canister, Front

1шт.

2

84403573

PADDING

SCR Canister, Front, Nar Loader Ready, VAR 332821, 334821, 743702

1шт.

3

84301097

SOFT TRIM

1шт.

4

84370311

STEP

1шт.

5

14189071

SPRING NUT,M6

6шт.

6

84399494

WASHER

Thermal Insulator

1шт.

7

84348915

SCREW,Pan Hd Phil, M6 x 20mm, w/Thermal Insulator

with Bushing

19шт.

8

16089877

SCREW,Spcl Tap, Pan Hd Phil, M4.50mm x 2.5 x 12mm

2шт.

9

84399565

BRACKET

1шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

11

9706690

NUT,M8 x 1.25, Cl 8

2шт.

12

84493346

COVER

1шт.

13

14371071

SPRING NUT,M5, 12mm W x 20.3mm OAL

3шт.

14

1983571

HEX SOC SCREW,M5 x 12mm, Cl 10.9

3шт.

Выбрано товаров: 15
