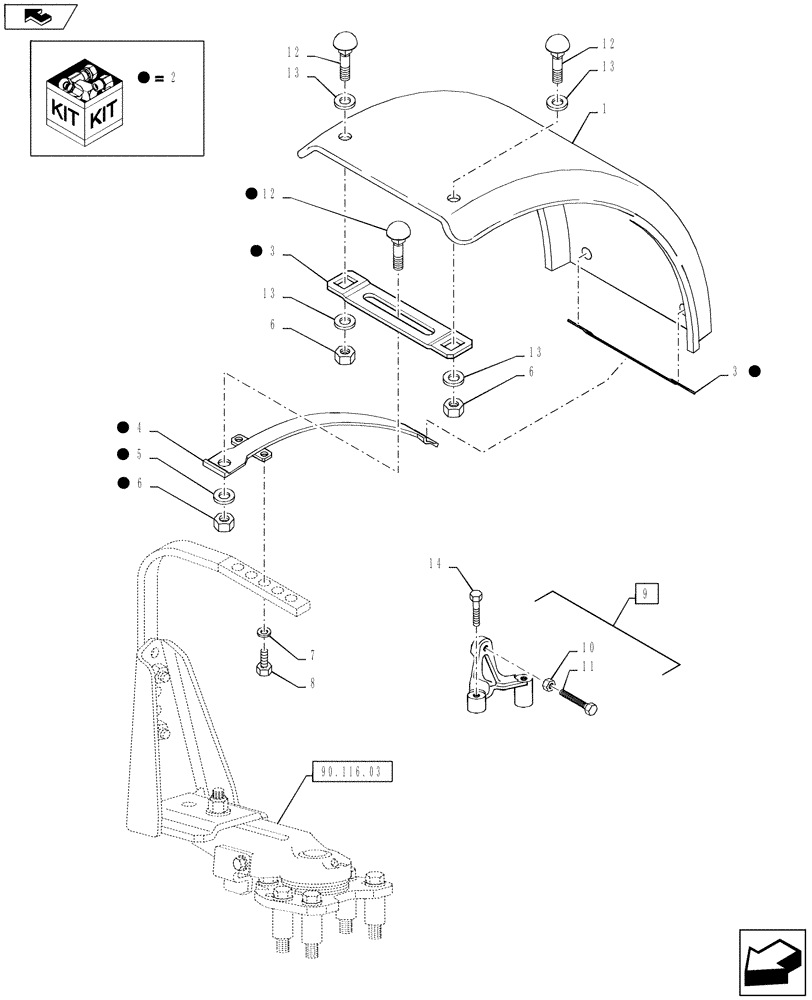

Запчасти Case IH PUMA 145 (90.116.01) - VAR - 333884, 334884, 335884, 337884 - DYNAMIC FRONT FENDERS - FENDERS AND BRACKETS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87616388

MUD DEFLECTOR,420mm W

Front Fender Dynamic, VAR 333884

2шт.

1

87616389

FRONT FENDER,480mm W

Front Fender Dynamic, VAR 334884

2шт.

1

87616390

MUD DEFLECTOR,540mm W

Front Fender Dynamic, VAR 335884

2шт.

1

87616391

MUD DEFLECTOR,620mm W

Front Fender Dynamic, VAR 337884

2шт.

2

87659018

SUPPORT

Incl 3 - 6 and 12

2шт.

3

82021040

SUPPORT

2шт.

4

87616362

BRACKET

1шт.

5

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

10шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

2шт.

7

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

8

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

9

87475473

STOP

RH, Incl 10, 11

1шт.

9

87475476

STOP

LH, Incl 10, 11

1шт.

10

11701711

NUT,Hex, M10, Cl 8, ZND

10шт.

11

15215021

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

2шт.

12

13183201

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 4.8

10шт.

13

84145763

WASHER,14mm ID x 41.3mm OD x 2.64mm Thk

8шт.

14

14331024

BOLT,M12 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.
