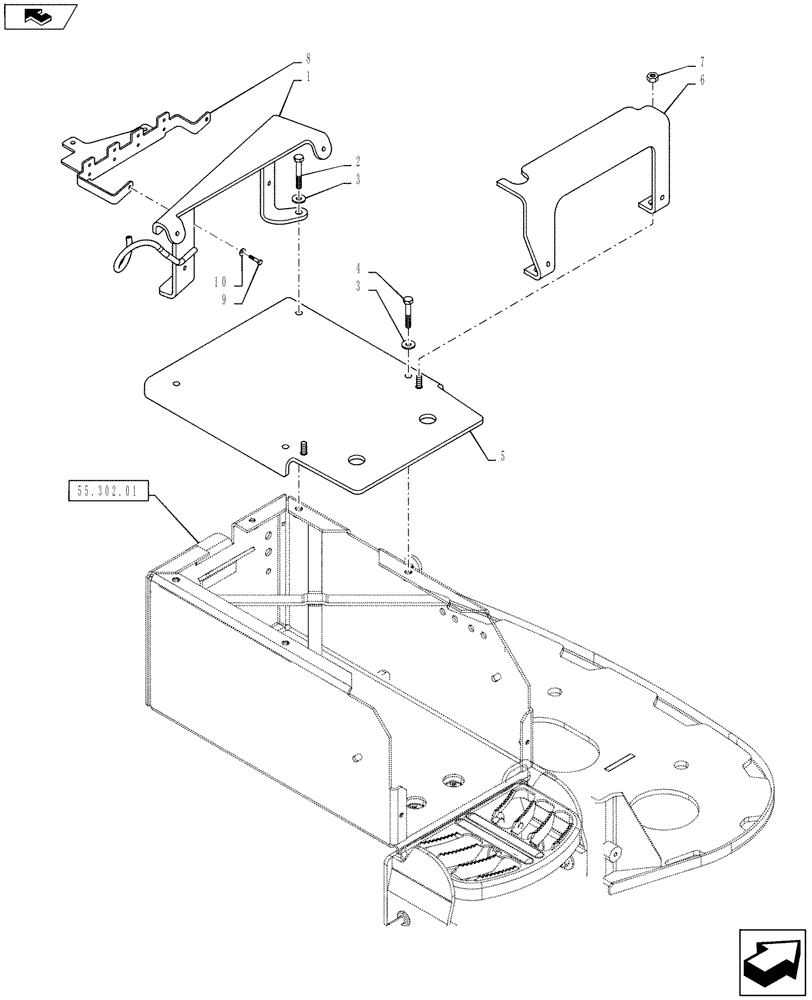

Запчасти Case IH PUMA 145 (90.105.01) - ELECTRONIC MID MOUNTED VALVES - SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84410644

SUPPORT

1шт.

2

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

3

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

4

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

5

84371296

COVER

1шт.

5

84402068

SUPPORT

VAR 743689, 330560, 333560, 743690, 330561, 333561

1шт.

6

84371293

SUPPORT

1шт.

7

86639231

NUT,M8, Cl 10

2шт.

8

84339071

SUPPORT

1шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.
