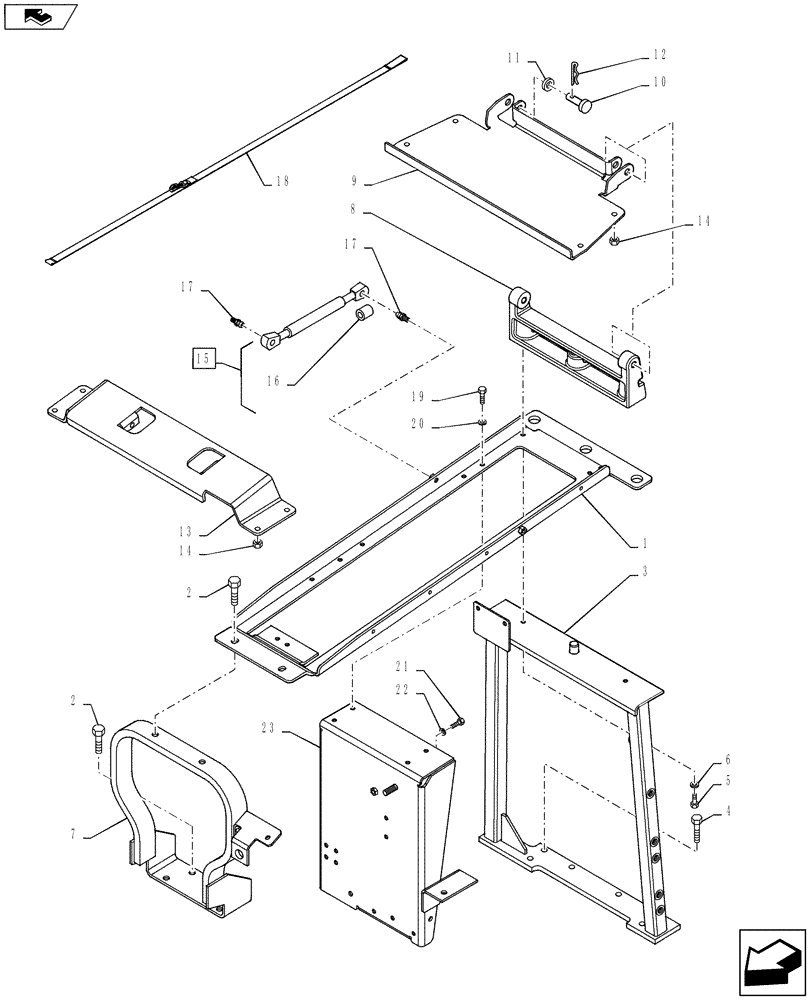

Запчасти Case IH PUMA 145 (90.100.02) - SUPPORT - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84337706

SUPPORT

, Serial Range: -C7149

1шт.

1

84485123

SUPPORT

, Start Serial: D7149

1шт.

2

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

6шт.

3

84148993

SUPPORT

, Serial Range: -C7125

1шт.

3

84572064

SUPPORT

, Start Serial: D7125

1шт.

4

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

5

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

2шт.

6

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

7

87727191

SUPPORT

Front Hood

1шт.

8

87353681

HINGE

Hood

1шт.

9

84153356

PLATE

1шт.

10

87353680

PIN,12.2mm OD x 44mm L

2шт.

11

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

12

82026318

COTTER PIN,1/8 x 2 5/16

2шт.

13

87612108

PANEL

1шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

15

82036570

GAS STRUT

Incl 16

2шт.

16

82019394

SEAL

1шт.

17

83952214

BALL STUD,M8 x 29.5mm OAL

4шт.

18

84284508

SECURING STRAP

1шт.

19

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

20

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

21

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

3шт.

22

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

3шт.

23

84268312

SUPPORT

1шт.
