(88.090.03[01]) - DIA KIT, DYNAMIC FRONT FENDERS (540MM) - SUPPORT

Запчасти Case IH PUMA 145 (88.090.03[01]) - DIA KIT, DYNAMIC FRONT FENDERS (540MM) - SUPPORT (88) - ACCESSORIES

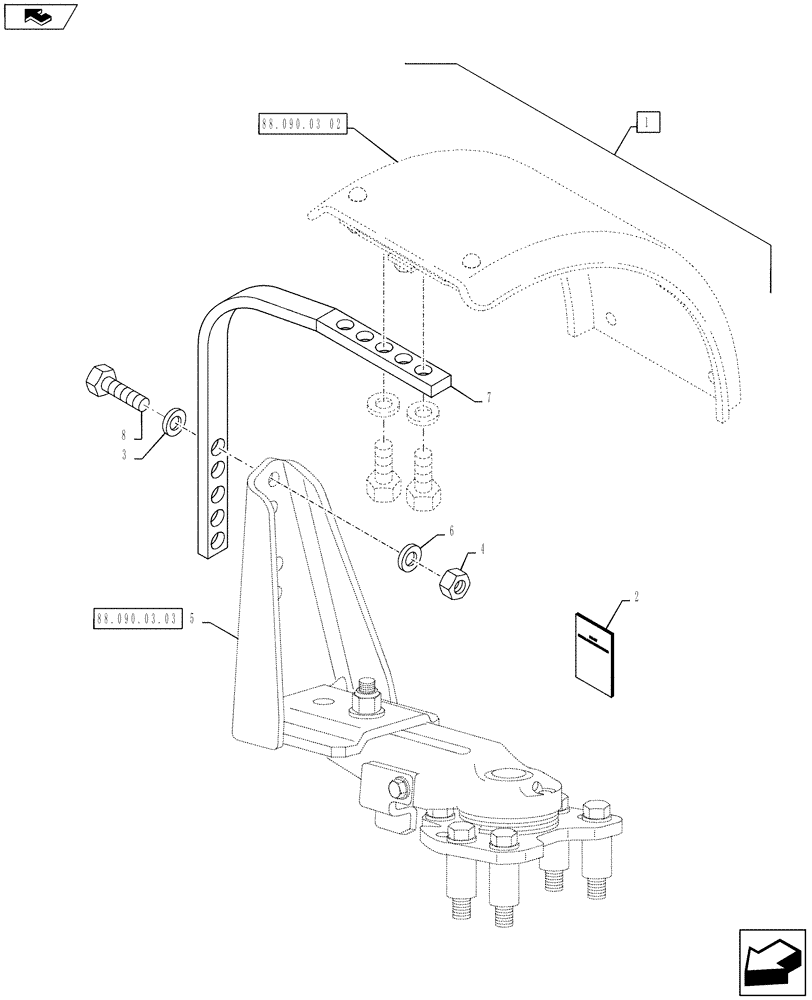

Схема запчастей Case IH PUMA 145 - (88.090.03[01]) - DIA KIT, DYNAMIC FRONT FENDERS (540MM) - SUPPORT (88) - ACCESSORIES
4
8
2
7
88.090.03 02
5
6
88.090.03.03
1
home
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

718775024

DIA KIT, TRACTOR

Front Fenders 540mm Dynamic, Incl 2 - 8, Incl Parts on Figures 88.090.03 01 - 03

1шт.

2

84143209

INSTRUCTION

1шт.

3

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

9шт.

4

12164911

NUT,M12 x 1.75, Cl 8

4шт.

5

87748075

HUB

RH

1шт.

5

87748076

HUB

LH

1шт.

6

11198574

BELLEVILLE WASHER,Belleville, M10.5

8шт.

7

82027913

SUPPORT

2шт.

8

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

4шт.
