(88.037.02) - DIA KIT, SLIDER TOW HOOK WITH FIXED COUPLING - 43MM

Запчасти Case IH PUMA 145 (88.037.02) - DIA KIT, SLIDER TOW HOOK WITH FIXED COUPLING - 43MM (88) - ACCESSORIES

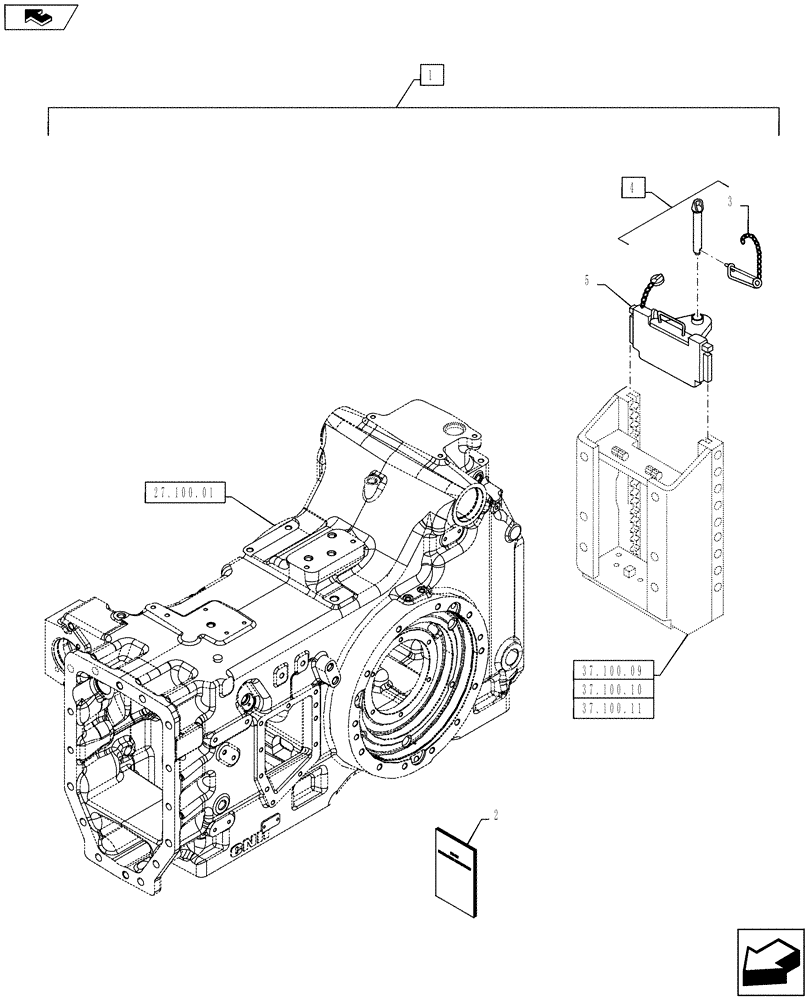

Схема запчастей Case IH PUMA 145 - (88.037.02) - DIA KIT, SLIDER TOW HOOK WITH FIXED COUPLING - 43MM (88) - ACCESSORIES
37.100.10
27.100.01
37.100.11
home
3
4
1
2
5
37.100.09
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710932024

DIA KIT, TRACTOR

Hook Cat D2 for Slider Type Trailer Hitch, 43mm Dia Pin, Incl 2 - 5

1шт.

2

84142248

INSTRUCTION

1шт.

3

5159486

PIN

Incl 4

1шт.

4

5152004

HAIR PIN COTTER,195mm L

1шт.

5

5199451

TOW HOOK

1шт.

Выбрано товаров: 5
