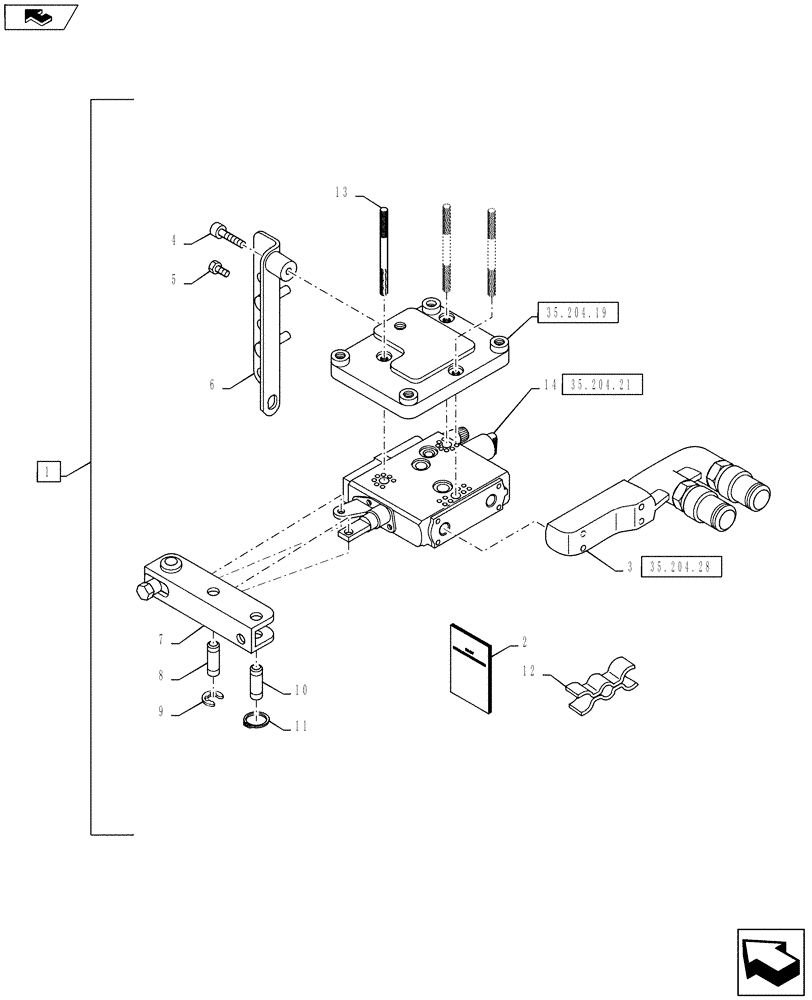

Запчасти Case IH PUMA 145 (88.035.02[01]) - DIA KIT, 2 ADDITIONAL MECHANICAL CONFIGURATION REMOTES (2 TO 4) - REMOTES (88) - ACCESSORIES

1

710024034

DIA KIT, TRACTOR

Two Additional Remotes, Mech Configuration for GARU, Incl 2 - 14. Kit Incl parts on figures 88.035.02 01 - 03

1шт.

2

84207005

INSTRUCTION

1шт.

3

87381964

QUICK MALE COUPLING

1шт.

3

87381965

QUICK MALE COUPLING

1шт.

4

14305671

SCREW,M6 x 35mm, Cl 12.9

4шт.

5

14306071

SCREW,M6 x 50mm, Cl 12.9

4шт.

6

87358965

STOP

1шт.

7

87358094

LEVER

2шт.

8

5193177

PIN,6mm OD x 29.48mm L

2шт.

9

11063971

SPRING CLIP,M6

4шт.

10

5113008

PIN,8mm OD x 26mm L

2шт.

11

11065676

SNAP RING,M8, Ext

4шт.

12

5191951

CLAMP,3 Hoses

1шт.

13

47129476

THREADED TIE-ROD,M8

3шт.

14

87328572

HYD VALVE SECTION

2шт.

87328572R

REMAN-HYD VALVE

PUMA 130, PUMA 145, PUMA 160, ALL (1/11-)

2шт.

87328572C

CORE-VALVE HYD

Return Number

1шт.
