Запчасти Case IH PUMA 145 (88.035.01[01]) - DIA KIT, ADDITIONAL MECHANICAL CONFIGURATION REMOTE (3 TO 4 ) - REMOTE VALVE (88) - ACCESSORIES

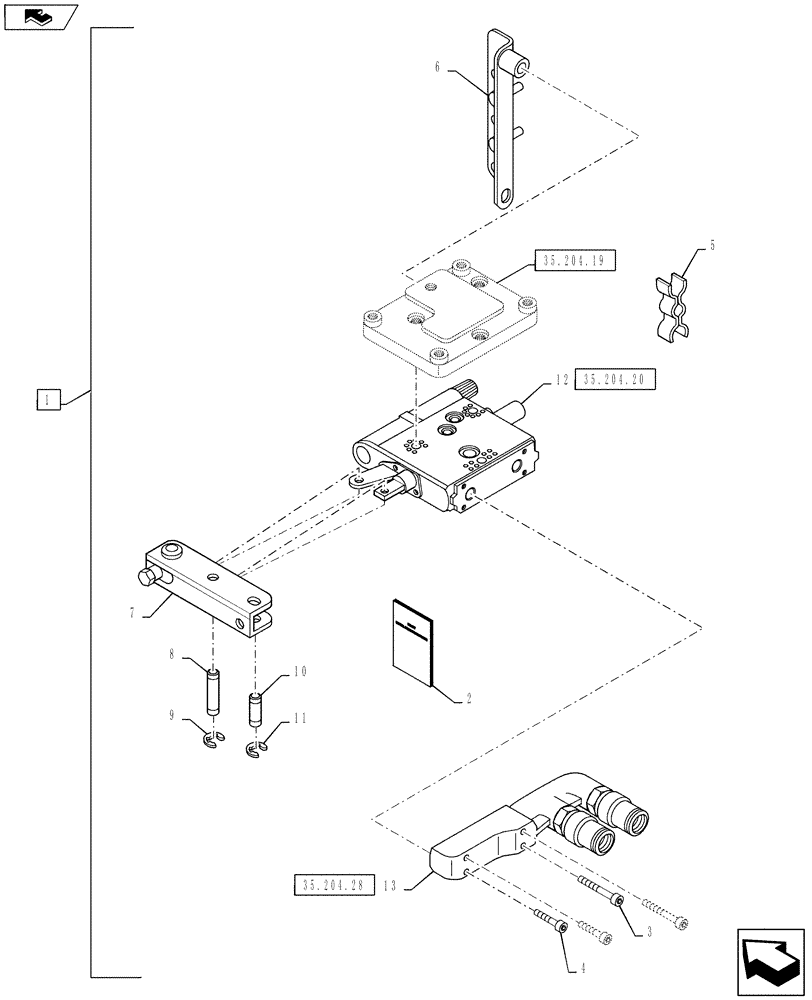

Схема запчастей Case IH PUMA 145 - (88.035.01[01]) - DIA KIT, ADDITIONAL MECHANICAL CONFIGURATION REMOTE (3 TO 4 ) - REMOTE VALVE (88) - ACCESSORIES
9
10
35.204.28
7
35.204.20
35.204.19
12
8
13
5
4
1
3
2
6
11
home

Артикул

Название

Примечание

Количество

1

710020034

DIA KIT, TRACTOR

One Additional Remote, Mech Configuration for GARU, Incl 2 - 12. Kit incl figures 88.035.01 01 - 03

1шт.

2

84207005

INSTRUCTION

1шт.

3

14305671

SCREW,M6 x 35mm, Cl 12.9

2шт.

4

14306071

SCREW,M6 x 50mm, Cl 12.9

2шт.

5

5191951

CLAMP,3 Hoses

1шт.

6

87358965

STOP

1шт.

7

87358094

LEVER

1шт.

8

5193177

PIN,6mm OD x 29.48mm L

1шт.

9

11063971

SPRING CLIP,M6

2шт.

10

5113008

PIN,8mm OD x 26mm L

1шт.

11

11065676

SNAP RING,M8, Ext

2шт.

12

87546169

CONTROL VALVE

1шт.

12

87546169R

REMAN-HYD VALVE

1шт.

12

87546169C

CORE-VALVE HYD

Return Number

1шт.

13

87381965

QUICK MALE COUPLING

1шт.

Выбрано товаров: 15
