(88.031.01[03]) - DIA KIT, FRONT POWER TAKE-OFF - FRONT BRAKE VALVE PIPE

Запчасти Case IH PUMA 145 (88.031.01[03]) - DIA KIT, FRONT POWER TAKE-OFF - FRONT BRAKE VALVE PIPE (88) - ACCESSORIES

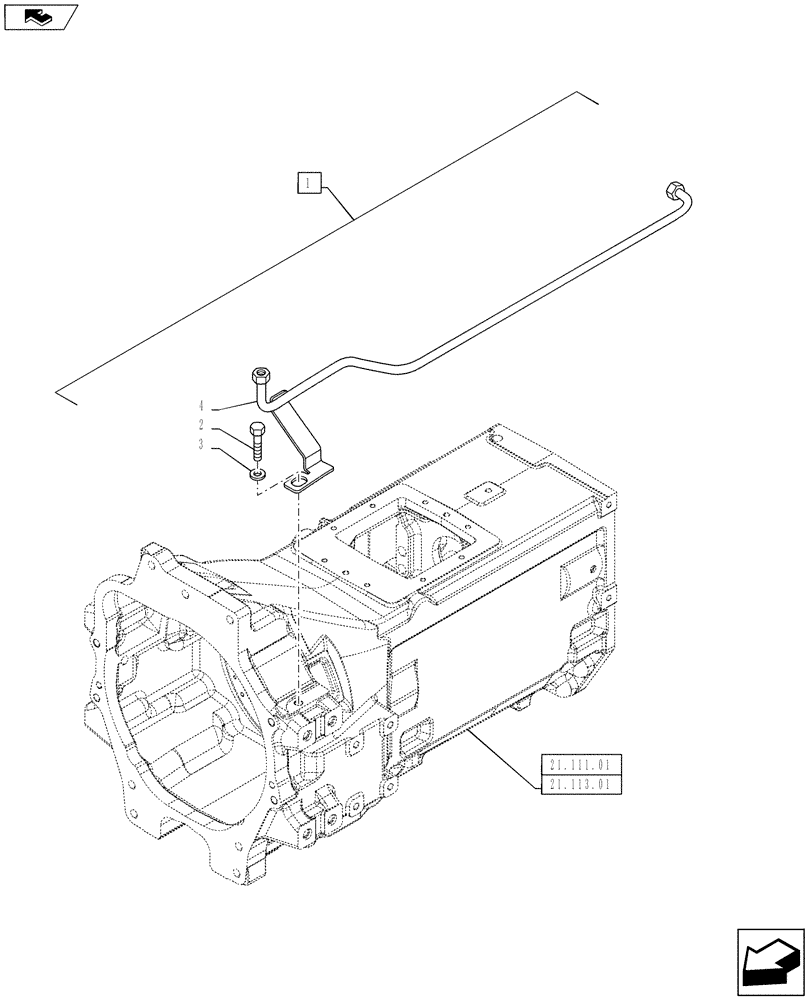

Схема запчастей Case IH PUMA 145 - (88.031.01[03]) - DIA KIT, FRONT POWER TAKE-OFF - FRONT BRAKE VALVE PIPE (88) - ACCESSORIES
3
home
1
21.113.01
4
2
21.111.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719098064

DIA KIT, TRACTOR

Incl 2 - 4, Front PTO, 6 Spline, 1000 RPM, Kit Incl figures 88.033.01 01 - 07

1шт.

2

374888

BOLT,Hex, M16 x 2 x 25mm, Cl 8.8, Full Thd

1шт.

3

10520205

WASHER,Flat, 16.40mm ID x 28.00mm OD x 3.00mm, CST, ZND

1шт.

4

87519145

PIPE

1шт.

Выбрано товаров: 4
