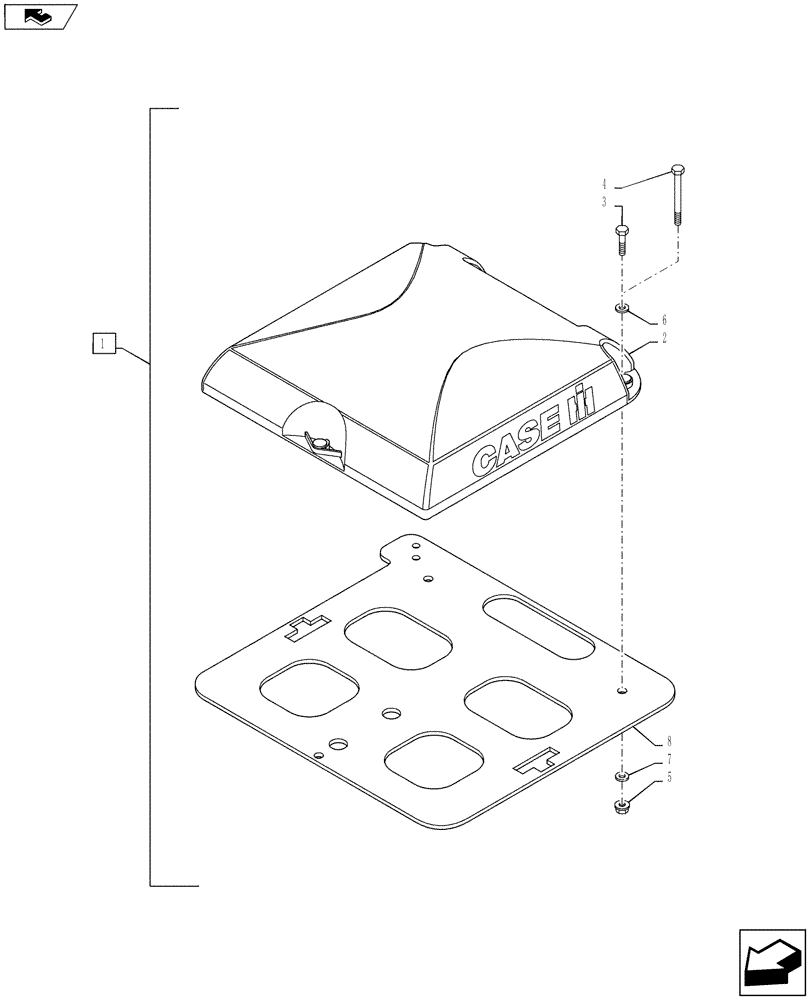

Запчасти Case IH PUMA 145 (55.911.01) - VAR - 330084 - GPS RECEIVER - AUTOGUIDANCE COMPLETION PACKAGE (55) - ELECTRICAL SYSTEMS

1

87369143

KIT

AFS GPS RECEIVER w/HP/XP, Incl 2 - 8, Serial Range: -C7181

1шт.

1

84588269R

REMAN ELECT CONTROL

PUMA 130, PUMA 145, PUMA 160, All TRACTOR, AFS GPS RECEIVER w/HP/XP, Serial Range: -C7181, VAR-330084 (1/11-), Reman for New PN 87369143

1шт.

1

84588269C

CORE-ELECTRONIC CONT

Return Number

1шт.

1

84588269

AFS PARTS & PACKAGES

AFS GPS RECEIVER w/HP/XP, Incl 2 - 8, Start Serial: D7181

1шт.

1

84588269R

REMAN ELECT CONTROL

PUMA 130, PUMA 145, PUMA 160, All TRACTOR, AFS GPS RECEIVER w/HP/XP, Start Serial: D7181, VAR - 330084 (1/11-)

1шт.

1

84588269C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

84148115

MODULE

GPS Receiver, Serial Range: -C7181

1шт.

2

84574273R

REMAN ELECT CONTROL

PUMA 130, PUMA 145, PUMA 160, All TRACTOR, GPS Receiver, Serial Range: - C7181 VAR-330084 (1/11-), Reman for New 84148115

1шт.

2

84574273C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

84574273

GPS RECEIVER

GPS Receiver, Start Serial: D7181

1шт.

2

84574273R

REMAN ELECT CONTROL

PUMA 130, PUMA 145, PUMA 160, All TRACTOR, GPS RECEIVER, Start Serial: D7181 VAR-330084 (1/11-)

1шт.

2

84574273C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

without Radio Receiver

3шт.

4

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

w/Receiver

3шт.

5

86511444

FLANGE NUT,Hex, M6 x 1

3шт.

6

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

8

87496985

MOUNTING PLATE

1шт.
