Запчасти Case IH PUMA 145 (55.512.11) - VAR - 743687, 334782, 337782 - ELECTRONIC JOYSTICK WITH 3 BUTTONS FOR ANCILLARY SELECTION (55) - ELECTRICAL SYSTEMS

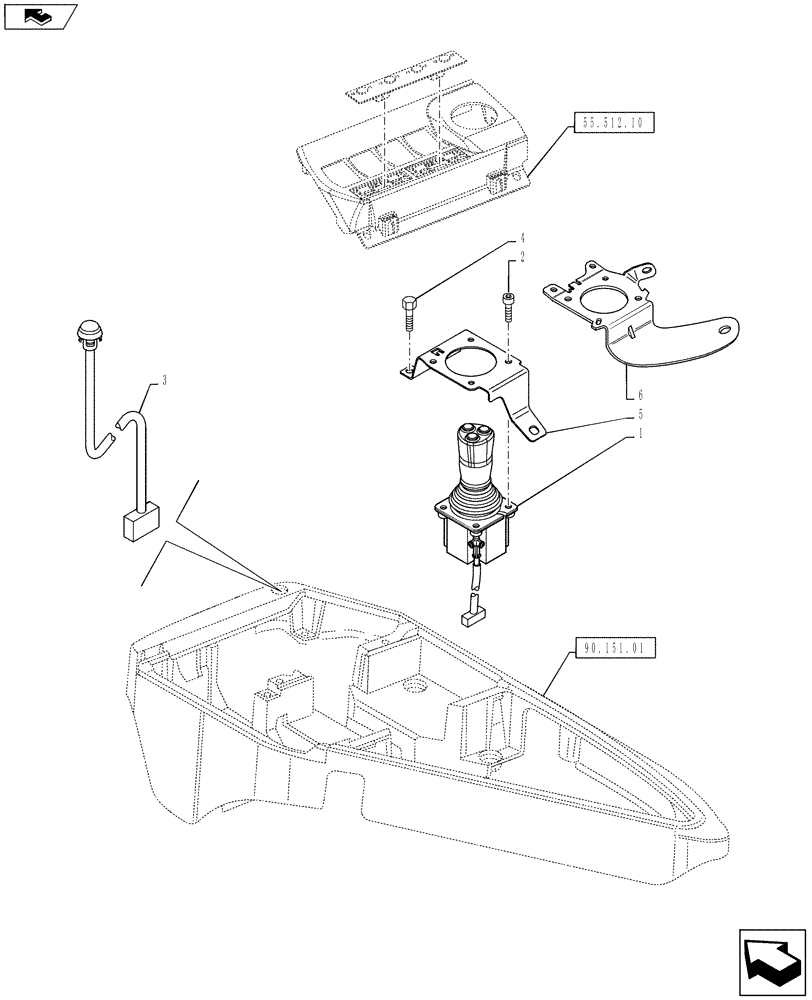

Схема запчастей Case IH PUMA 145 - (55.512.11) - VAR - 743687, 334782, 337782 - ELECTRONIC JOYSTICK WITH 3 BUTTONS FOR ANCILLARY SELECTION (55) - ELECTRICAL SYSTEMS
5
6
90.151.01
home
3
4
55.512.10
2
1

Артикул

Название

Примечание

Количество

1

84208739

JOYSTICK

(With 3 Buttons, Green, Yellow, Black)

1шт.

2

86639293

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

3

87485775

SWITCH ASSY

1шт.

4

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

5

84202338

BRACKET

EHR, VAR 743687, 337782, LH Side on Command Arm

1шт.

6

84150720

HOLDER

Mechanical Remotes, VAR 743687, 334782

1шт.

Выбрано товаров: 6
