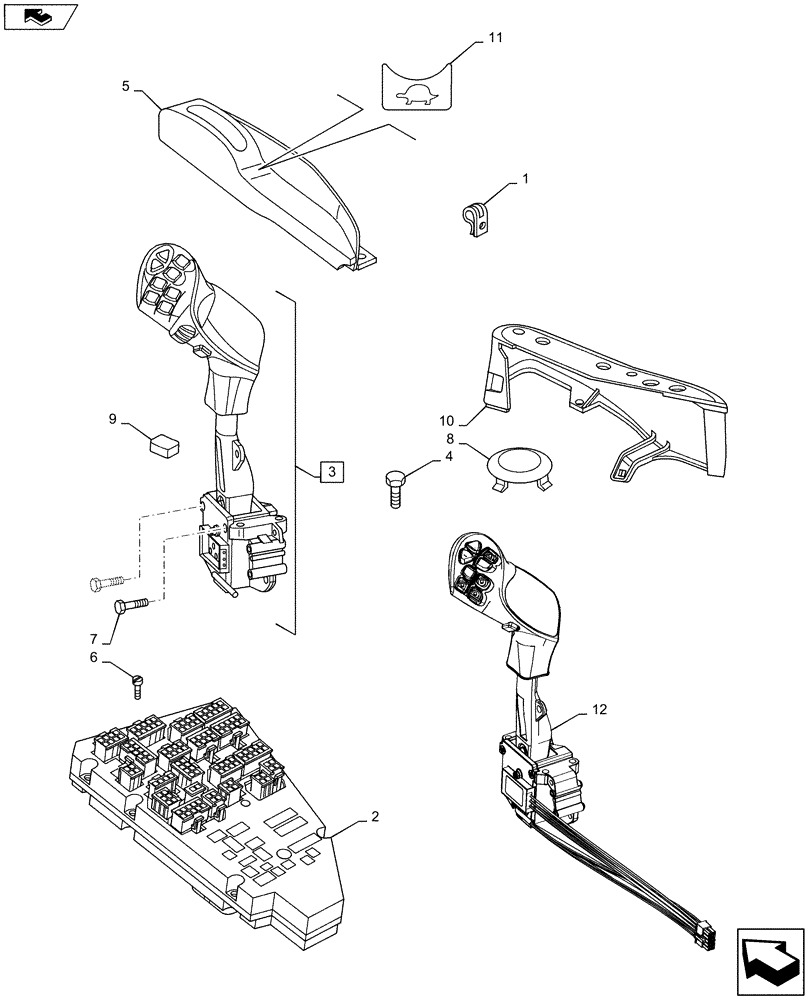

Запчасти Case IH PUMA 145 (55.512.08) - ARMREST CONTROL UNIT - ELECTRONIC CONTROLS AND ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS

1

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

1шт.

2

84209240

MODULE

Armrest Control Module, Serial Range: -C9019

1шт.

2

47443335R

REMAN ELECT CONTROL

PUMA 130, PUMA 145, PUMA 160, All TRACTOR, Armrest Control Module, Serial Range: -C9019 (1/11-)

1шт.

2

47443335C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

84356314

MODULE

Armrest Control Module, Serial Range: D9019-C9021

1шт.

2

47443335R

REMAN ELECT CONTROL

PUMA 130, PUMA 145, PUMA 160, All TRACTOR, Armrest Control Module, Serial Range: D9019-C9021 (1/11-)

1шт.

2

47443335C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

47443335

MODULE

Armrest Control Module, Start Serial: D9021

1шт.

2

47443335R

REMAN ELECT CONTROL

PUMA 130, PUMA 145, PUMA 160, All TRACTOR, Armrest Control Module, Start Serial: D9021 (1/11-)

1шт.

2

47443335C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

84209526

LEVER

Incl 9, Serial Range: -C9021

1шт.

84209526R

REMAN-JOYSTICK

PUMA 130, PUMA 145, PUMA 160 all TRACTOR (1/11-)

1шт.

84209526C

CORE-JOYSTICK

Return Number

1шт.

4

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

2шт.

5

84122981

BEZEL

1шт.

6

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

5шт.

7

13276621

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 8.8, Full Thd

4шт.

8

87725444

BLANK-OFF PLUG,57.5mm OD, Black

Less Joystick

1шт.

9

84238354

CAP

1шт.

10

84216544

HOUSING

1шт.

11

84145169

DECAL

1шт.

12

84596604

JOYSTICK

, Start Serial: D9021

1шт.

12

84596604R

REMAN-JOYSTICK

, Start Serial: D9021

1шт.

12

84596604C

CORE-JOYSTICK

Return Number

1шт.
