Запчасти Case IH PUMA 145 (55.510.01[01]) - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS

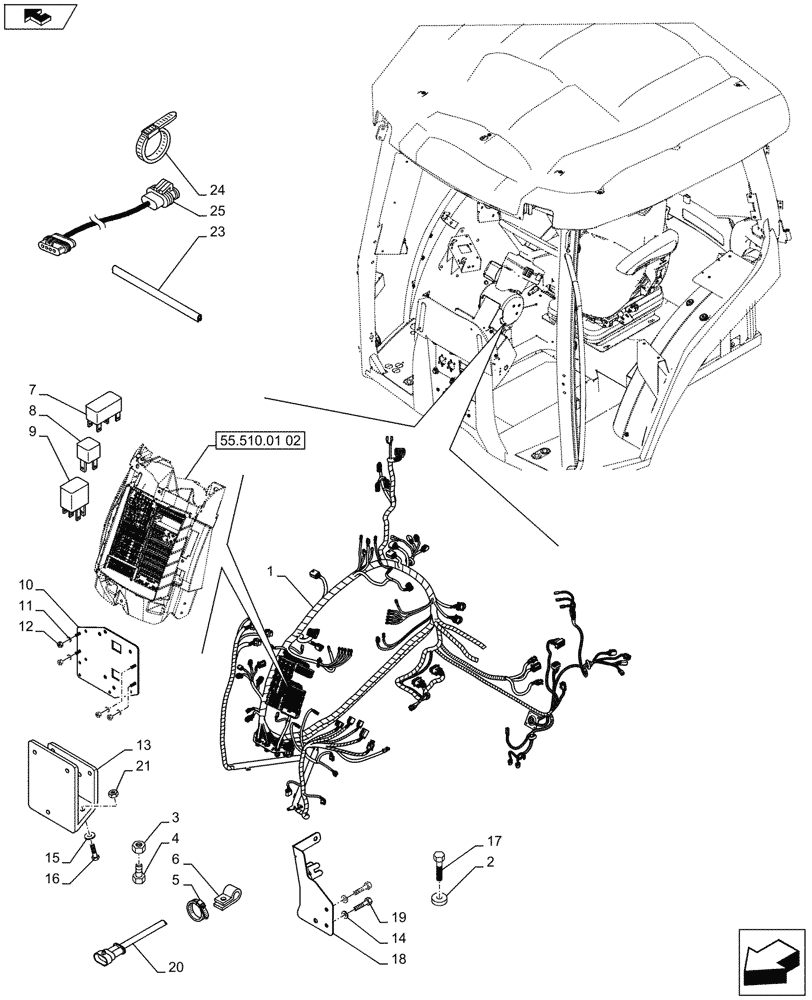

Схема запчастей Case IH PUMA 145 - (55.510.01[01]) - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS
55.510.01 02
6
4
16
11
21
24
20
17
8
5
12
7
14
25
9
2
3
home
23
15
18
19
10
13
1

Артикул

Название

Примечание

Количество

1

84339493

WIRE HARNESS

ASSY, Cab, Serial Range: -C7107

1шт.

See also Figure 55.510.01 (02), 55.510.01 (03), 55.510.01 (04), 55.510.01 (05), 55.100.17 (06)

1шт.

1

84358492

WIRE HARNESS

ASSY, Cab, Serial Range: D7107-C7106

1шт.

See also Figure 55.510.01 (02), 55.510.01 (03), 55.510.01 (04), 55.510.01 (05), 55.100.17 (06)

1шт.

1

47358680

WIRE HARNESS

ASSY, Cab, Start Serial: D7106

1шт.

See also Figure 55.510.01 (02), 55.510.01 (03A), 55.510.01 (04A), 55.510.01 (05A), 55.100.01 (06)

1шт.

2

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

4шт.

2

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

3

9706755

NUT,M6, Cl 8

4шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

2шт.

4

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

7шт.

4

10978021

BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd

2шт.

5

82001040

CABLE TIE,.19" x 11.5"

3шт.

5

14560287

CABLE TIE,207.00mm L

3шт.

5

82033028

CABLE TIE,170mm L

1шт.

5

82013031

CABLE TIE,193mm L

3шт.

5

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

2шт.

6

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

1шт.

6

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

7

87304226

RELAY,12V, Combined, Black

Wiper Timer

1шт.

8

82030798

RELAY,12V, 70A

30A

1шт.

8

82013124

RELAY,12V, 30A

70A

1шт.

9

82023238

RELAY,12V, 20A

1шт.

10

87325625

SUPPORT

1шт.

11

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

4шт.

12

9706755

NUT,M6, Cl 8

4шт.

13

87314581

BRACKET

1шт.

14

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

15

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

16

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

17

83929012

CAPTIVE WASHER SCREW,HWH, M6.3 x 1.8 x 20mm

2шт.

18

87597230

SUPPORT

1шт.

19

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

20

82034343

WIRE HARNESS

Ground Speed

1шт.

21

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

21

83958007

NUT,M8, G8

1шт.

23

87617359

PROTECTOR

, Serial Range: -C7166

1шт.

23

84545777

PROTECTION STRIP

, Start Serial: D7166

2шт.

24

82012869

CABLE TIE,300mm L, Nylon, Black

5шт.

25

84538374

WIRE HARNESS

Trinary

1шт.

Выбрано товаров: 40
