Запчасти Case IH PUMA 145 (55.404.07) - VAR - 743726, 330007, 335007, 336007 - REAR COMBINATION LAMPS (55) - ELECTRICAL SYSTEMS

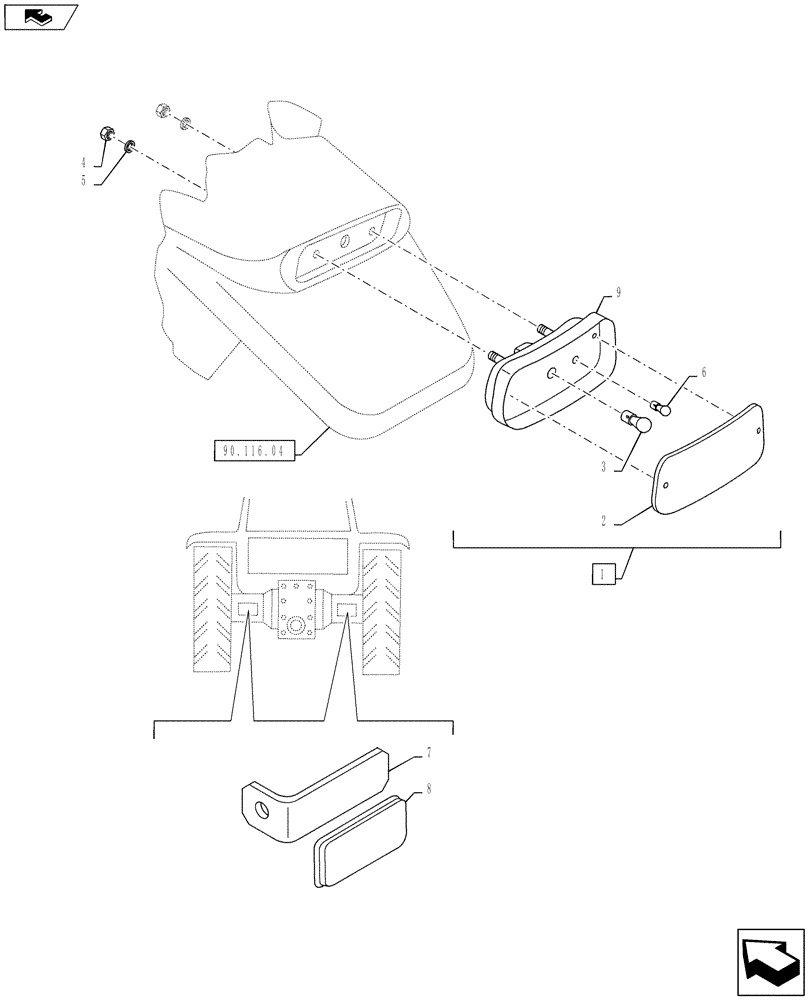

Схема запчастей Case IH PUMA 145 - (55.404.07) - VAR - 743726, 330007, 335007, 336007 - REAR COMBINATION LAMPS (55) - ELECTRICAL SYSTEMS
7
90.116.04
5
9
4
8
1
3
6
2
home

Артикул

Название

Примечание

Количество

1

87536432

TAIL LAMP,12V, 21W, Amber/Red

RH, Incl 2, 3, 6, 9, VAR 330007, 335007

1шт.

1

87536433

TAIL LAMP,12V, 21W, Amber/Red

LH, Incl 2, 3, 6, 9, VAR 330007, 335007

1шт.

1

87536434

TAIL LAMP,12V, 21W, Amber/Red

RH, VAR 335007, 336007 Wide Fenders, Incl 2, 3, 6, 9

1шт.

1

87536435

TAIL LAMP,12V, 21W, Amber/Red

LH, VAR 335007, 336007 Wide Fenders, Incl 2, 3, 6, 9

1шт.

2

87357815

LENS

LH, Red and Amber

1шт.

2

87357816

LENS

RH, Red and Amber

1шт.

3

529068

BULB,#1156, 12V, 21W

12V, 21W

2шт.

4

15896211

NUT,M6, Cl 8

4шт.

5

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

6

14144690

BULB,P21/5W, 12V, 21/5W

12V, 21/5W

2шт.

7

84205313

BRACKET

2шт.

8

82034755

REFLECTOR,RED

2шт.

9

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

2шт.
