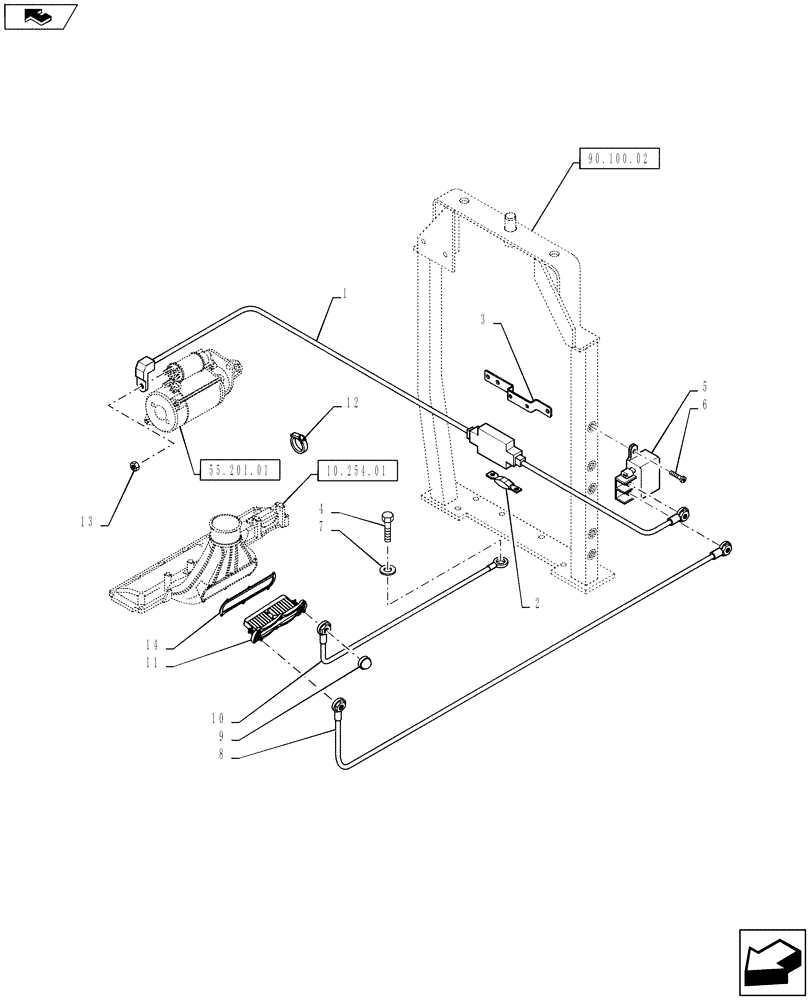

Запчасти Case IH PUMA 145 (55.202.01) - VAR - 330204 - GRID HEATER (55) - ELECTRICAL SYSTEMS

1

84243701

WIRE HARNESS

Grid Heater, Incl 2

1шт.

2

11056290

FUSE,125A, Maxi

1шт.

3

87570805

BRACKET

1шт.

4

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

5

82022813

RELAY,12V, High Current

Grid Heater

1шт.

6

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

2шт.

7

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

8

82036464

ELECTRIC CABLE,650mm L

Power

1шт.

9

87533425

COVER,M6

4шт.

10

87316233

ELECTRIC CABLE

Earth Jumper

1шт.

11

2854837

HEATER

Grid

1шт.

12

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

2шт.

13

15896211

NUT,M6, Cl 8

1шт.

14

2854701

GASKET,0.8mm Thk

1шт.
