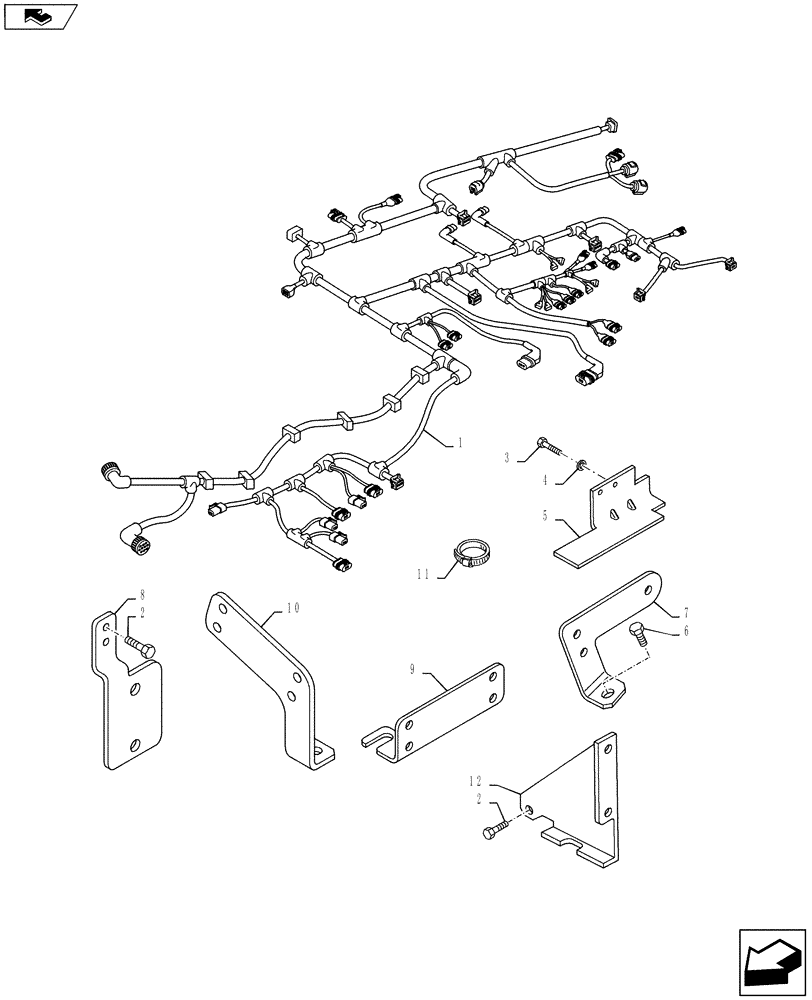

Запчасти Case IH PUMA 145 (55.101.01) - HARNESS - REAR FRAME (55) - ELECTRICAL SYSTEMS

1

84352219

WIRE HARNESS

SPS Trans, less EHRS

1шт.

1

84352218

WIRE HARNESS

SPS Trans, w EHRS, VAR 332836, 390835

1шт.

1

84352223

WIRE HARNESS

FPS Trans, w EDC less EHRS , VAR 331835

1шт.

1

84352222

WIRE HARNESS

FPS Trans, w EDC, EHRS, VAR 334836

1шт.

2

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

3шт.

3

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

4

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

5

82033141

SHIELD

FPS, VAR 330285

1шт.

6

15970321

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

7

87620213

BRACKET

1шт.

8

87624046

BRACKET

1шт.

9

87652791

SUPPORT

1шт.

10

87671389

SUPPORT

1шт.

11

81844383

CABLE TIE

1шт.

12

87652790

SUPPORT

Only for Models with Electrohydraulic Remotes

1шт.
