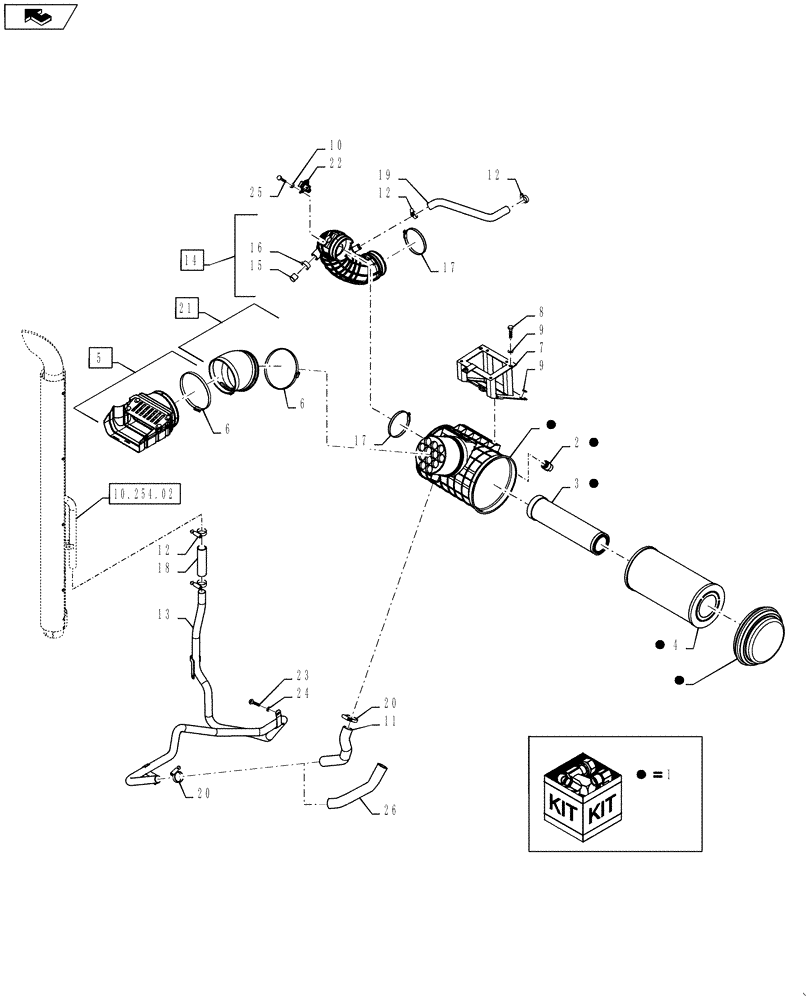

Запчасти Case IH PUMA 145 (10.202.01) - AIR CLEANER & INTAKE PARTS (10) - ENGINE

1

87585981

AIR CLEANER

Incl 2 - 4

1шт.

1

84352636

AIR CLEANER

Incl 2 - 4

1шт.

2

82029621

INDICATOR

Air Restriction

1шт.

2

84043184

SENSOR

Air Restriction

1шт.

3

87683000

AIR FILTER,Safety, 108.5mm OD x 403.1mm L

Safety

1шт.

4

87682990

AIR FILTER,Primary, 105.9mm ID x 207.6mm OD x 409.5mm L

Main Element

1шт.

5

87518691

DUCT

Incl 6

1шт.

6

82021427

CLAMP

2шт.

7

84252251

SUPPORT

, Serial Range: -C7163

1шт.

7

84519037

BRACKET

, Start Serial: D7163

1шт.

8

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

6шт.

9

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

11

84278875

LARGE HOSE

Aspirator

1шт.

12

82036709

HOSE CLAMP,25mm - 40mm, Worm Gear

4шт.

13

84319357

TUBE

1шт.

14

84340051

HOSE

Incl 15, 16

1шт.

15

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

16

13387570

HOSE CLAMP

1шт.

17

82036460

HOSE CLAMP,110mm - 130mm, Worm Gear

2шт.

18

82036395

FLEXIBLE HOSE,33.00 mm ID x 140.00 mm

1шт.

19

84411830

AIR HOSE

1шт.

20

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

2шт.

21

84131959

AIR DUCT

Incl 6

1шт.

22

87482355

SENSOR

Temperature, Humidity

1шт.

23

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

3шт.

24

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

25

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

26

84379921

LARGE HOSE

Aspirator

1шт.
