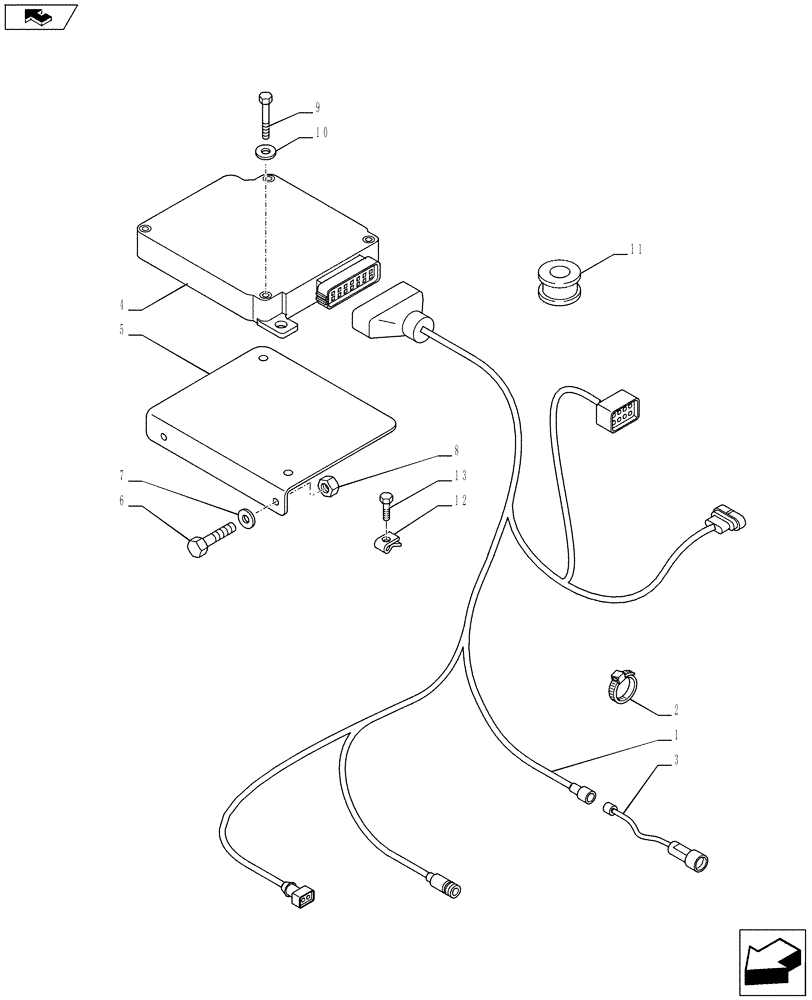

Запчасти Case IH PUMA 145 (55.047.02) - VAR - 743723, 330631, 336631 - FAST STEERING - AUXILIARY CABLES (55) - ELECTRICAL SYSTEMS

1

84228359

HARNESS

Fast Steer

1шт.

2

82001040

CABLE TIE,.19" x 11.5"

7шт.

3

87738133

SENSOR

Fast Steer

1шт.

4

87563011

MODULE

1шт.

5

87325630

SUPPORT

1шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

7

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

8

14084111

LOCK NUT,M5 x .8, Flg

2шт.

9

86050276

BOLT,Hex, M5 x 16mm, Cl 8.8, Full Thd

2шт.

10

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

11

81862745

GROMMET,10mm x 38 x 28

1шт.

12

14371771

SPRING NUT,M6, U, 24.3mm long

2шт.

13

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.
