(55.021.01) - TRANSMISSION - SOLENOID VALVES AND PRESSURE SWITCHES

Запчасти Case IH PUMA 145 (55.021.01) - TRANSMISSION - SOLENOID VALVES AND PRESSURE SWITCHES (55) - ELECTRICAL SYSTEMS

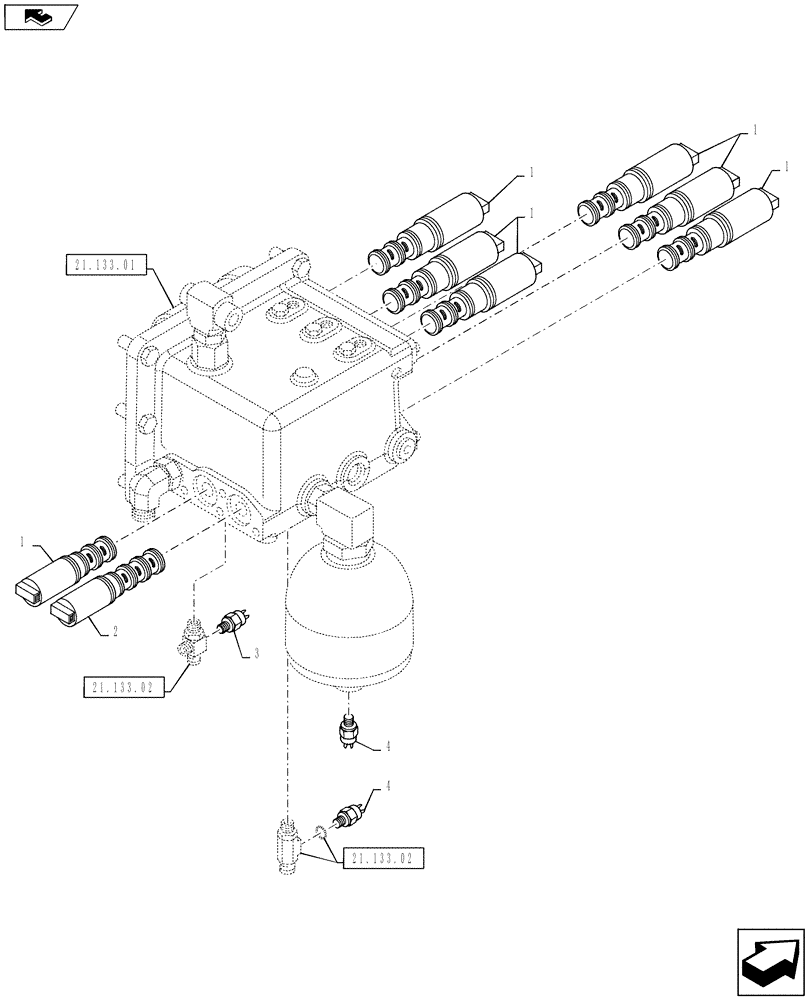

Схема запчастей Case IH PUMA 145 - (55.021.01) - TRANSMISSION - SOLENOID VALVES AND PRESSURE SWITCHES (55) - ELECTRICAL SYSTEMS
4
home
2
1
3
1
21.133.01
1
1
1
21.133.02
4
21.133.02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84273815

SOLENOID VALVE,12V DC, 7.3Ohm

Black Connectors

7шт.

2

87739558

SOLENOID VALVE,14W

Green Connectors

1шт.

2

87739558R

REMAN-SOLENOID

Green Connectors

1шт.

2

87739558C

CORE-SOLENOID

Return Number

1шт.

3

82008236

SWITCH ASSY

Transmission Oil Pressure, 51mm Lng

1шт.

4

87395493

PRESSURE SWITCH

Transmission Oil Pressure, 10 - 20 Bar

2шт.
