Запчасти Case IH PUMA 145 (50.200.02[01A]) - AIR CONDITIONING SYSTEM PIPES - D7161 (50) - CAB CLIMATE CONTROL

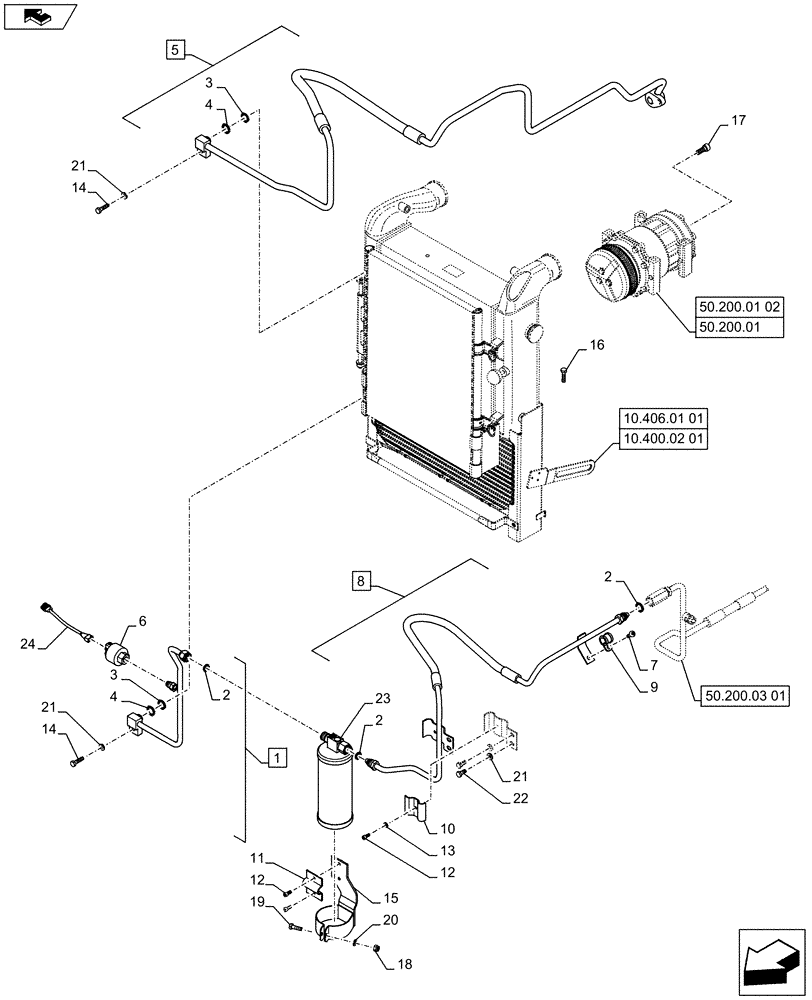

Схема запчастей Case IH PUMA 145 - (50.200.02[01A]) - AIR CONDITIONING SYSTEM PIPES - D7161 (50) - CAB CLIMATE CONTROL
10.406.01 01
20
14
18
16
11
5
8
21
10
2
1
9
4
12
home
14
3
7
21
24
15
2
21
2
22
17
13
3
23
6
19
4
12
10.400.02 01
50.200.01 02
50.200.01
50.200.03 01

Артикул

Название

Примечание

Количество

1

84582953

HYD TUBE

Incl 2 - 4

1шт.

2

82000793

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

3шт.

3

14450683

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

10319183

O-RING,13.1mm ID x 1.6mm Width

2шт.

5

47418354

PIPE

ASSY, Incl 3, 4

1шт.

6

84233818

PRESSURE SWITCH

Switch A/C High Pressure

1шт.

7

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.

8

47418365

PIPE

ASSY, Incl 2

1шт.

9

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

10

87653304

BRACKET

1шт.

11

84233849

BRACKET

1шт.

12

14303021

SCREW,M4 x 12mm, Cl 8.8, Full Thd

3шт.

13

10615279

LOCK WASHER,M4, Serr

1шт.

14

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

15

87750158

BRACKET

1шт.

16

87015756

BOLT,Hex, M4 x 12mm, Cl 8.8, Full Thd

2шт.

17

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

1шт.

18

12574211

NUT,M6 x 1, Cl 8

1шт.

19

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

20

10516474

LOCK WASHER

1шт.

21

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

22

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

23

47446235

RECEIVER-DRYER

1шт.

24

84221137

WIRE HARNESS

A/C Pressure Switch, Puma 130

1шт.

Выбрано товаров: 24
