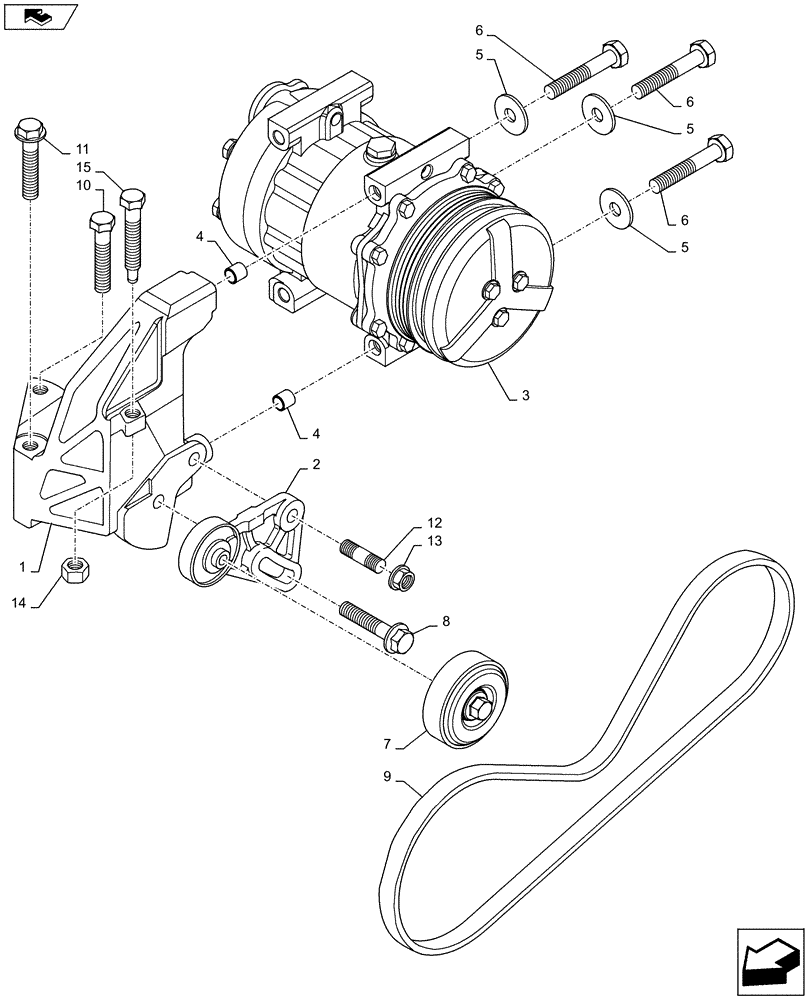

Запчасти Case IH PUMA 145 (50.200.01[03]) - COMPRESSOR - AIR CONDITIONING (50) - CAB CLIMATE CONTROL

1

87377961

SUPPORT

1шт.

2

87803498

BRACKET

1шт.

3

87709785

AIRCOND. COMPRESSOR,12V, 43W, W/ Pulley

1шт.

3

87709785R

REMAN-A/C COMPRESSOR

1шт.

3

87709785C

CORE-COMPRESSOR

Return Number

1шт.

3

47808999R

REMAN-A/C COMPRESSOR

Reman Compressor

1шт.

3

47808999C

CORE-A/C COMPRESSOR

Core Return Number

1шт.

4

4895227

GUIDE RING,11.15mm OD, 8.5mm ID, 9mm L

2шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

6

16046134

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

3шт.

7

87803152

IDLER,65mm OD

1шт.

8

87778358

FLANGE BOLT,Hex, M10 x 30mm, Cl 10.9

1шт.

9

84344776

V-BELT,14mm W x 940mm L, 4 Ribs

1шт.

10

87646157

FLANGE BOLT,Hex, M10 x 40mm, Cl 10.9

1шт.

11

87015921

BOLT,Hex, M10 x 75mm, Cl 10.9

2шт.

12

4899402

STUD,M10 x 1.5 x 45.00mm

1шт.

13

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

1шт.

14

100016

NUT,M10 x 1.5, Cl 8

1шт.

15

4899843

SCREW,Hex, M10 x 1.5 x 80

1шт.
