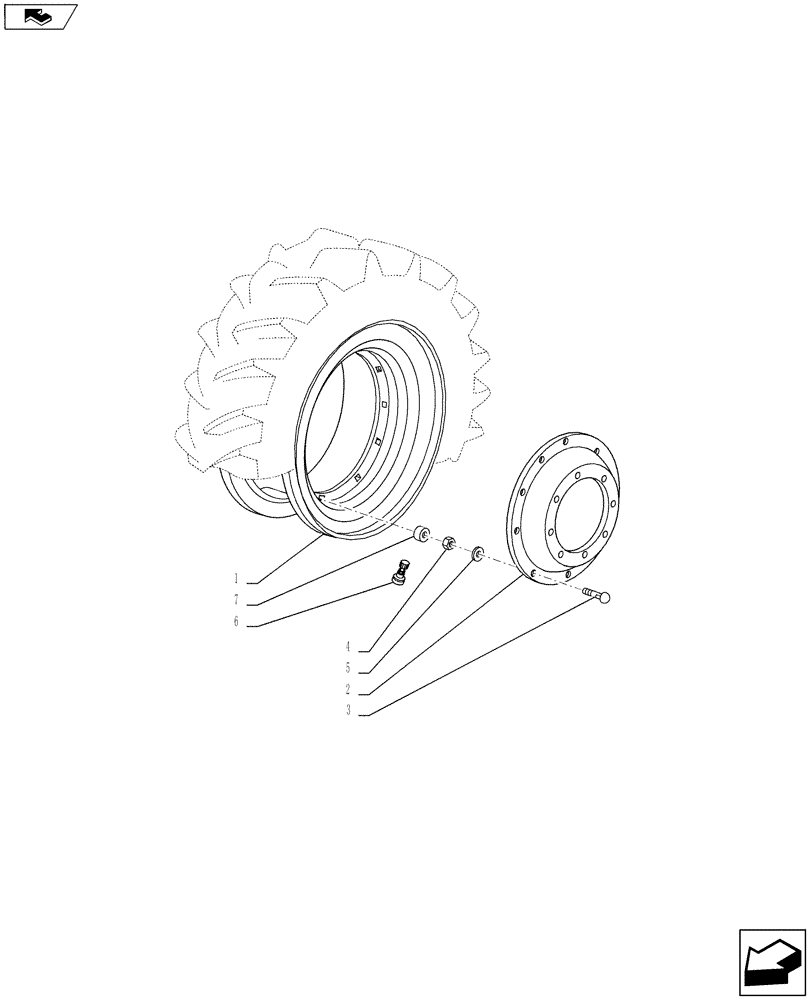

Запчасти Case IH PUMA 145 (44.511.06) - VAR - 8242904, 8241401, 8141901, 8258704, 8255904, 8868401, 8868901, 8857401 - FRONT WHEELS (44) - WHEELS

1

82031123

RIM,W12X28, 305mm W, 12 Bolts, Case Silver

W12x28, VAR 8242904 CL4, NA. uses 14.9R28 R1W Tire. Var 8241401 CL3, Var 8241901 CL4, EU. use with 380/85R28 R1W Tire

2шт.

1

82031129

RIM,DW12X30, 304.8mm W, 12 Bolts, Case Silver

W13x30, VAR 8258704, uses Tire 14.9R30 R1W, NA only

2шт.

1

82031125

RIM,W15LX28, 381mm W, 12 Bolts, Case Silver

W15x28, VAR 8255904, uses Tire 16.9R28 R1W

2шт.

1

84159630

RIM,W16LX28, 406.4mm W, 8 Bolts, Case Silver

W16Lx28, VAR 8868401, 8868901, uses 540/65R28 R1W Tire. EU only

2шт.

1

84159649

RIM,DW16LX30, 406.5mm W, 12 Bolts, Case Silver

DW16Lx30, VAR 8857401, uses 540/65R30 R1W Tire, EU only

2шт.

2

82031107

WHEEL DISC,606.2mm Dia, 12 Bolts, CASE Silver

28"

2шт.

3

82022305

BOLT,M16 x 1.5 x 58mm, Class 10.9

24шт.

4

12164121

NUT,M16 x 1.5, Cl 10

24шт.

5

82011967

WASHER,16.8mm ID x 28.4mm OD x 3.9mm Thk

24шт.

6

87323751

PNEUMATIC VALVE

2шт.

7

82031090

SPACER,16.5mm ID x 31mm OD x 15mm L

24шт.
