Запчасти Case IH PUMA 145 (41.432.01) - VAR - 330077, 331077 - AUTO GUIDANCE SYSTEM READY - VALVES AND PIPES (41) - STEERING

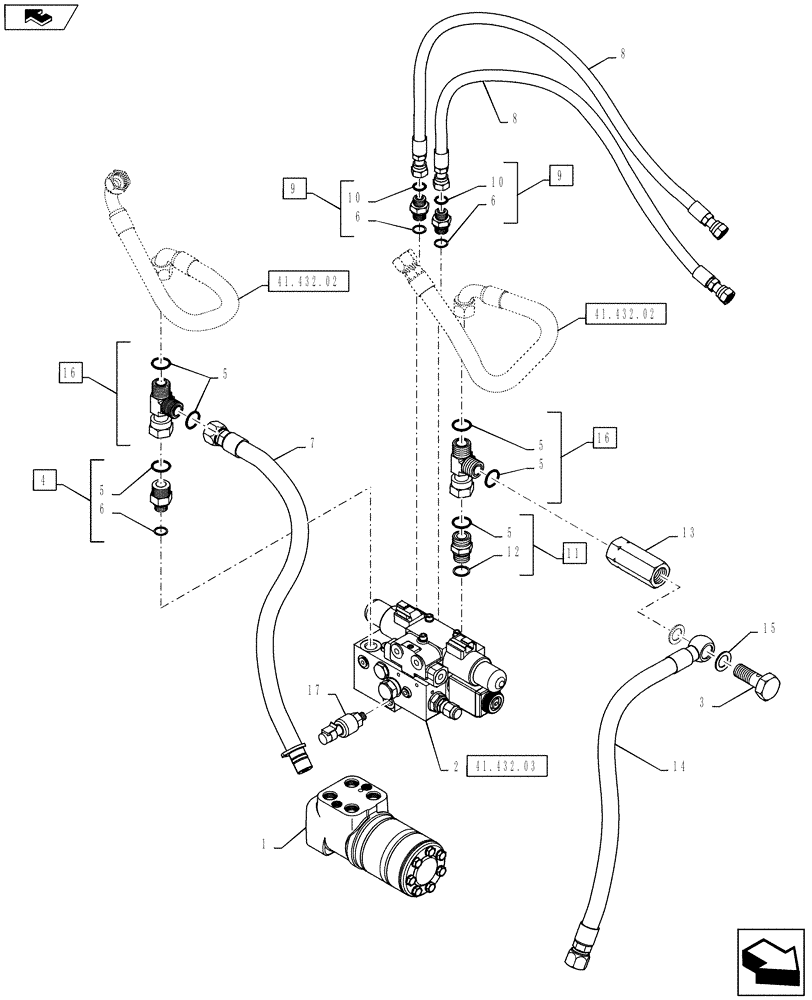

Схема запчастей Case IH PUMA 145 - (41.432.01) - VAR - 330077, 331077 - AUTO GUIDANCE SYSTEM READY - VALVES AND PIPES (41) - STEERING
6
5
5
41.432.03
12
15
14
8
6
3
16
6
10
5
9
home
2
7
1
4
8
5
16
9
41.432.02
13
10
17
41.432.02
11
5

Артикул

Название

Примечание

Количество

1

84198307

HYDRAULIC VALVE

1шт.

2

84211905

CONTROL VALVE

ASSY, For Powershift Only

1шт.

3

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

4

82016760

HYD CONNECTOR,1"-14 / M18 x 1.5

1шт.

5

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

6

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

7

87735434

HOSE ASSY.

Autoguide Return

1шт.

8

82037164

HOSE,9.53mm ID x 685mm L, SAE 100R2

Steering

1шт.

9

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

2шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

11

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

1шт.

12

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

13

87350633

FILTER

1шт.

14

87735435

HOSE ASSY.

Autoguide Pressure

1шт.

15

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

16

84989850

3 WAY CONNECTION

2шт.

17

87428328

PRESSURE SWITCH

High Pressure

1шт.

Выбрано товаров: 17
