(41.216.02) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - STEERING CYLINDER

Запчасти Case IH PUMA 145 (41.216.02) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - STEERING CYLINDER (41) - STEERING

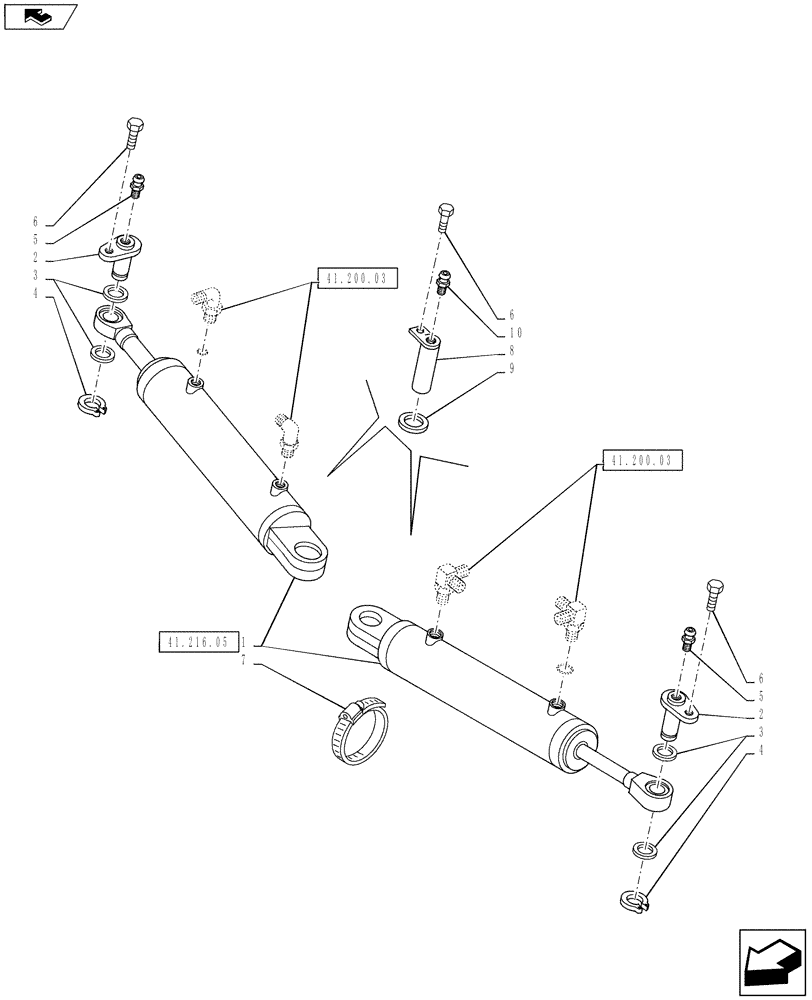

Схема запчастей Case IH PUMA 145 - (41.216.02) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - STEERING CYLINDER (41) - STEERING
1
9
5
4
10
6
3
5
4
2
8
home
6
41.200.03
41.216.05
6
2
41.200.03
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87521950

SERVO STEERING CYL

2шт.

2

5173252

PIN,19.98mm OD x 79.5mm L

2шт.

3

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

4шт.

4

11066876

SNAP RING,M20, Ext

2шт.

5

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

2шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

7

13000990

COLLAR,60mm - 80mm, Worm Gear

2шт.

8

5142048

PIN,19.98mm x 107.00mm

2шт.

9

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

2шт.

10

5120532

LUBE NIPPLE,Straight, M14 x 1.5 x 6.50mm

2шт.
