Запчасти Case IH PUMA 145 (41.106.01) - VAR - 330414, 330427, 390409 - CL.3 FRONT AXLE - STEERING TIE-ROD (41) - STEERING

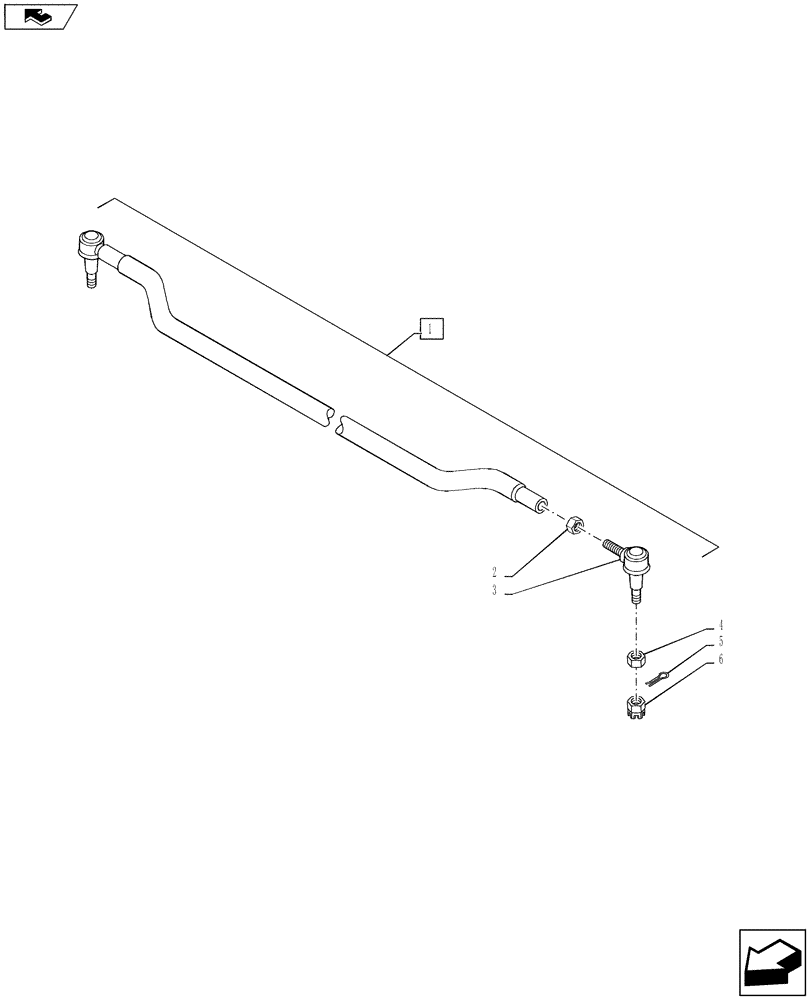

Схема запчастей Case IH PUMA 145 - (41.106.01) - VAR - 330414, 330427, 390409 - CL.3 FRONT AXLE - STEERING TIE-ROD (41) - STEERING
2
5
1
home
3
4
6

Артикул

Название

Примечание

Количество

1

5197798

TRACK ROD ASSY,M24 x 1.5mm ID x 1597mm L

Incl 2, 3

1шт.

2

10726911

THIN NUT,Thin, M24 x 1.5 x 10.00mm High, ZND

1шт.

3

87542553

BALL JOINT

1шт.

4

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

2шт.

5

10733804

COTTER PIN,4.00mm Dia x 16.00mm

2шт.

6

10724614

SLOTTED NUT,Thin Slotted, M18, 1.5mm Pitch, 15.00mm High, R80, DAC

2шт.

Выбрано товаров: 6
