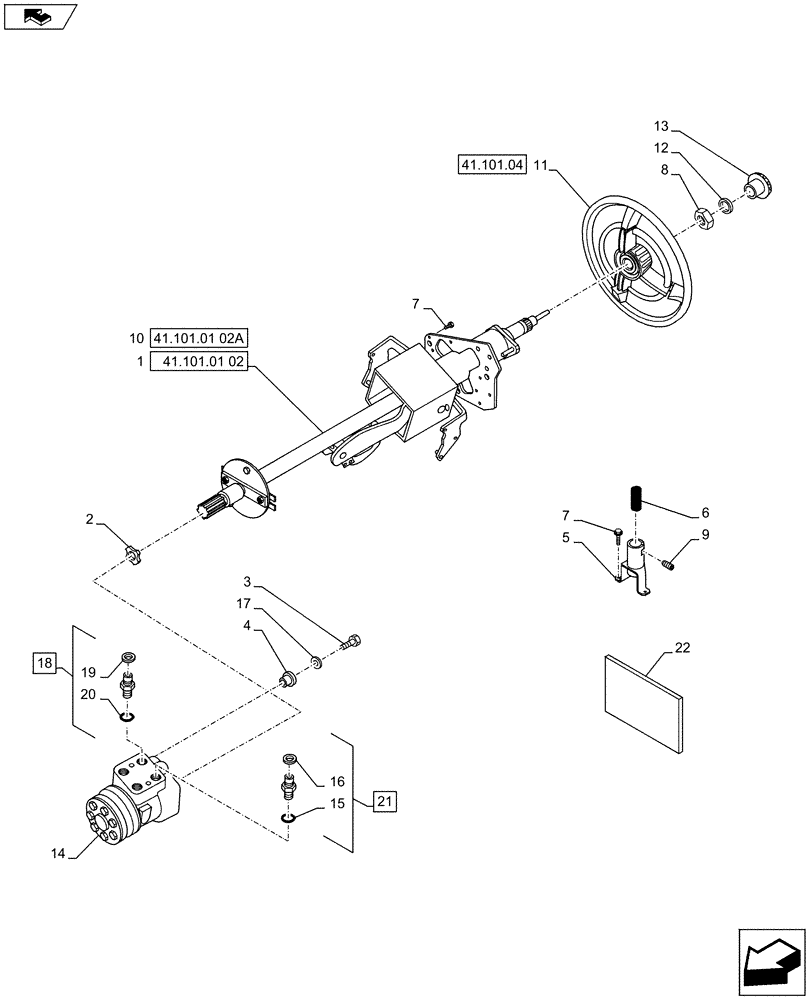

Запчасти Case IH PUMA 145 (41.101.02) - VAR - 330631, 336631, 743723 - FAST STEERING - STEERING COLUMN (41) - STEERING

1

84255779

STEERING COLUMN,Tilting, Telescoping

ASSY, Serial Range: -C9023

1шт.

2

81873344

RUBBER INSULATOR

1шт.

3

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

4

82009429

ISOLATOR

4шт.

5

87650958

BRACKET

, Serial Range: -C9023

1шт.

5

47390158

BRACKET

, Start Serial: D9023

1шт.

6

82012555

SPRING

1шт.

7

15957101

SELF-TAP SCREW,Pan, M3.5 x 10.00mm, R40, ZND

4шт.

8

412624

THIN NUT,Hex, M18, 1.5mm Pitch, 9.00mm High, ZND

1шт.

9

13802121

SCREW,M4 x 5mm, Cl 8.8

1шт.

10

47383940

STEERING COLUMN,Tilting, Telescoping

ASSY, Start Serial: D9023

1шт.

11

87330391

STEERING WHEEL

ASSY

1шт.

12

47136225

PLUG

1шт.

13

87350612

KNOB

1шт.

14

84143748

STEERING VALVE

, Serial Range: -C9023

1шт.

14

84165702

HYDRAULIC STEERING

, Start Serial: D9023

1шт.

15

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

17

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

18

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

Contains Ref. 19,20

2шт.

19

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

20

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

21

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

Contains Ref. 15,16

2шт.

22

82004409

DECAL

Decal Hole Blanking

1шт.
