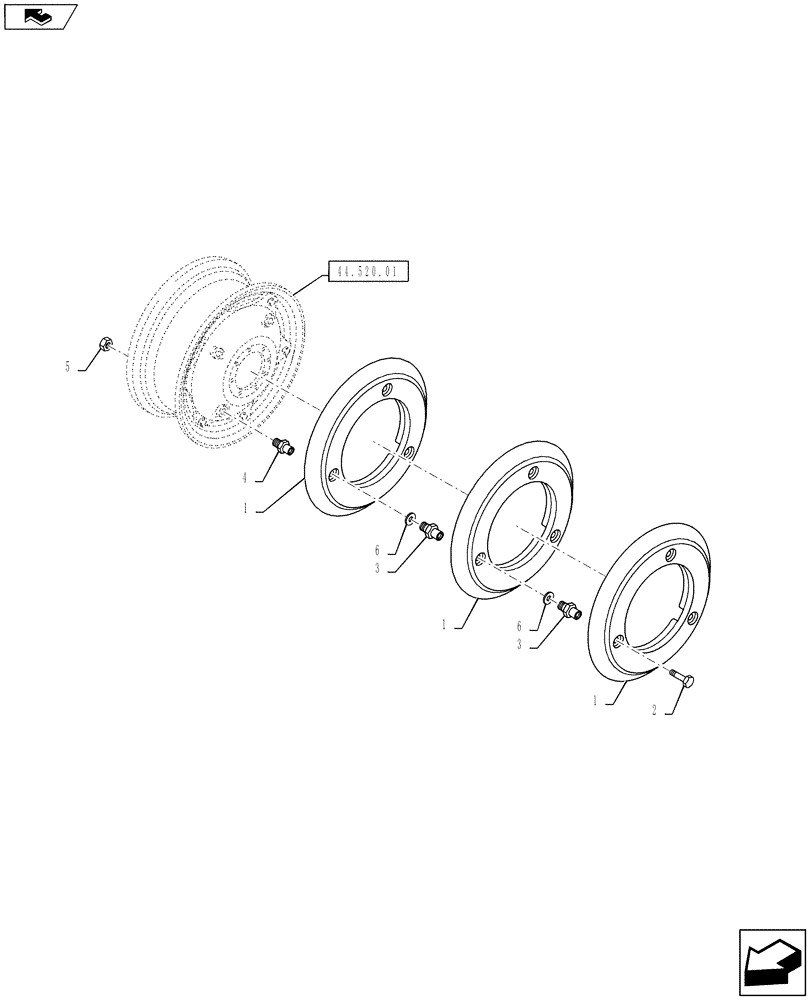

Запчасти Case IH PUMA 145 (39.140.06) - VAR - 743706, 330628, 331628 - REAR WHEEL BALLASTS (39) - FRAMES AND BALLASTING

1

47127369

WHEEL WEIGHT,65kg

65 KG

6шт.

2

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

Cast Wheels, VAR 331628

6шт.

2

11390534

BOLT,Hex, M16 x 1.5 x 40mm, Cl 10.9

Steel Wheels, VAR 330628

6шт.

3

44018047

SCREW,M16 x 1.5 x 78mm

Qty 12 with VAR 330628, Qty 18 with VAR 331628

1шт.

4

44018046

SCREW,M16 x 1.5 x 60mm

Steel Wheels, VAR 330628

6шт.

5

12164121

NUT,M16 x 1.5, Cl 10

6шт.

6

5100516

WASHER,17mm ID x 32mm OD x 5mm Thk

VAR 331628

6шт.
