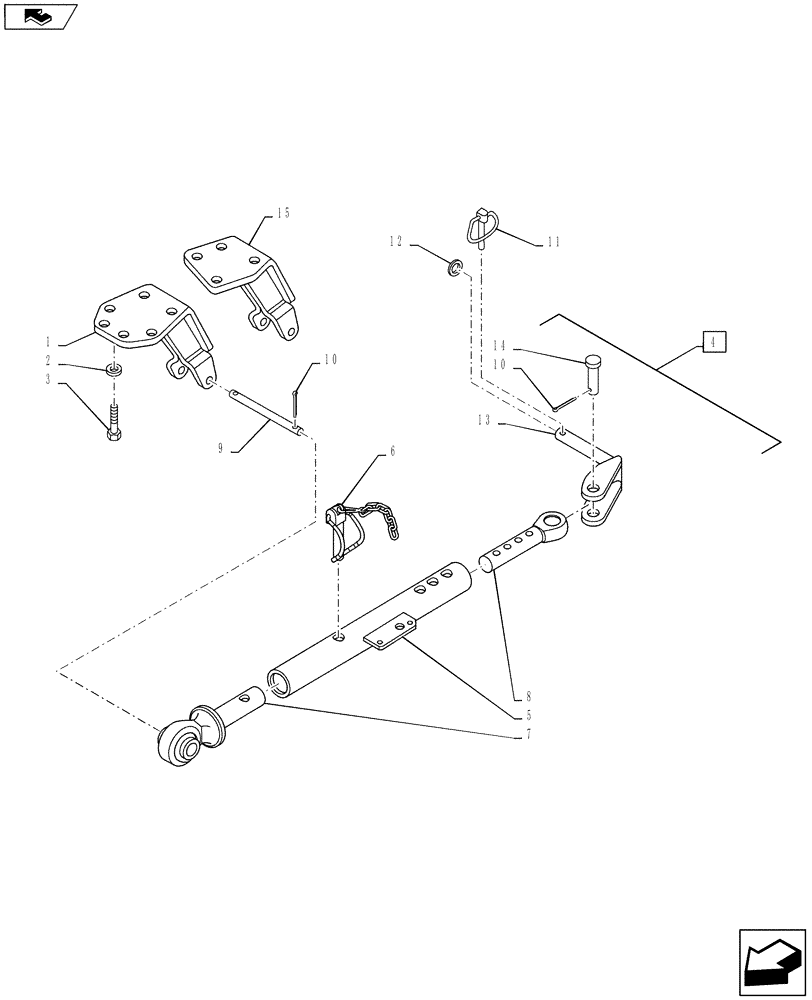

Запчасти Case IH PUMA 145 (39.129.02) - VAR - 330945 - MECHANICAL STABILIZERS PIN TYPE ADJUSTMENT (39) - FRAMES AND BALLASTING

1

5154775

SUPPORT

Puma 130, 145

2шт.

2

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

8шт.

3

15984321

BOLT,Hex, M18 x 1.5 x 50mm, Cl 8.8

8шт.

4

87392046

STABILIZER

Incl 5 - 8, 10, 13, 14

1шт.

5

87392049

TUBE

1шт.

6

5198385

LINCH PIN,15mm OD

2шт.

7

87304920

LIFT LINK END ASSY

1шт.

8

87309293

ROD

1шт.

9

5125861

PIN,19mm OD x 105mm L

2шт.

10

10798404

COTTER PIN,6.3mm Dia x 40.00mm, DAC

5шт.

11

47125579

LINCH PIN,11.5mm OD

2шт.

12

562106

WASHER,25.50mm ID x 45.00mm OD

2шт.

13

87382848

FORK

1шт.

14

47134675

PIN,26mm OD x 77mm L

1шт.

15

5190471

SUPPORT

LH, Puma 160

1шт.

15

5190497

SUPPORT

RH, Puma 160

1шт.
