(37.100.10) - VAR - 330942 - SLIDER TOW HOOK WITH FIXED C TYPE COUPLING, LESS SWINGING DRAWBAR (ITALY)

Запчасти Case IH PUMA 145 (37.100.10) - VAR - 330942 - SLIDER TOW HOOK WITH FIXED C TYPE COUPLING, LESS SWINGING DRAWBAR (ITALY) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

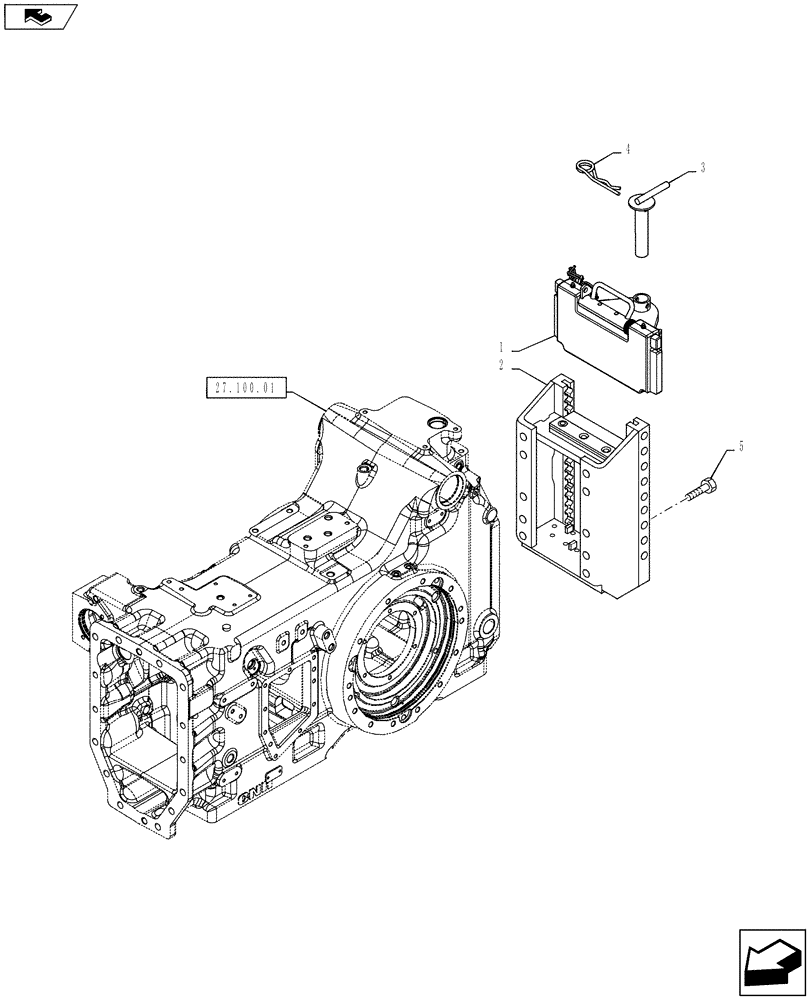

Схема запчастей Case IH PUMA 145 - (37.100.10) - VAR - 330942 - SLIDER TOW HOOK WITH FIXED C TYPE COUPLING, LESS SWINGING DRAWBAR (ITALY) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
home
1
3
4
27.100.01
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5199458

TOW HOOK

1шт.

2

84351258

FRAME

1шт.

3

82016898

HITCH PIN

1шт.

4

82000094

SPRING,40mm OD x 142mm L

1шт.

5

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

10шт.
