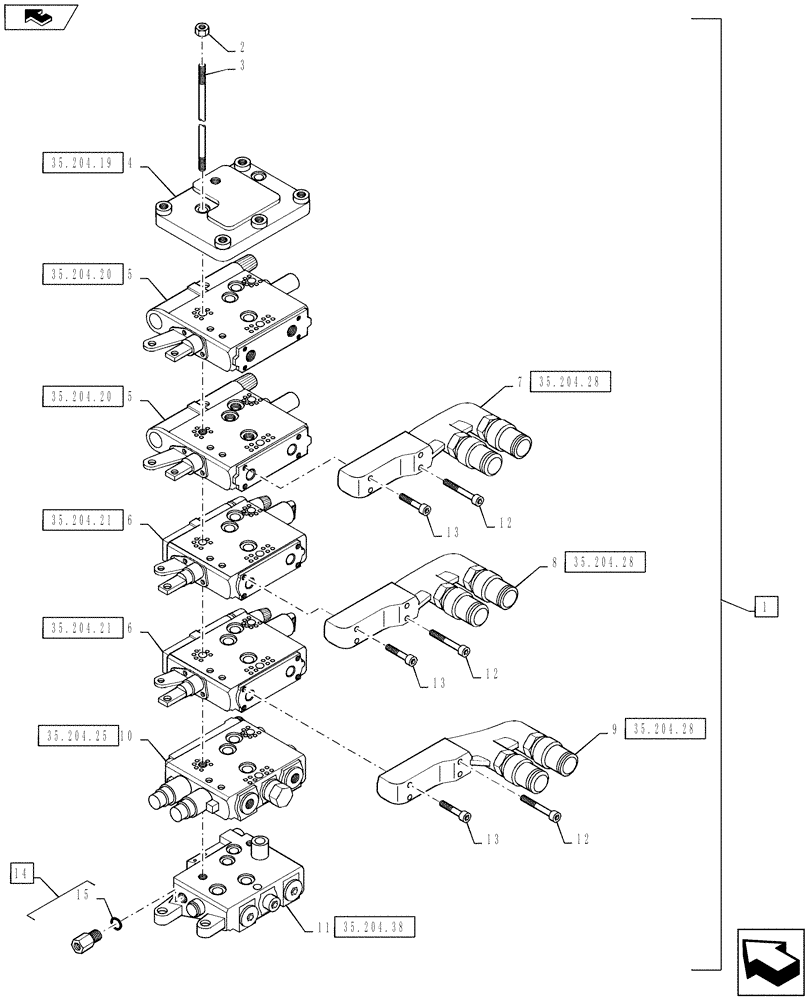

Запчасти Case IH PUMA 145 (35.204.05[02]) - VAR - 743685, 333845 - MECHANICAL REAR REMOTE CONTROL VALVES - VALVE SECTIONS & QUICK COUPLERS - 4 VALVE (35) - HYDRAULIC SYSTEMS

1

87311423

CONTROL VALVE

Incl 2 - 15

1шт.

2

5195169

NUT,M8

3шт.

3

47129476

THREADED TIE-ROD,M8

3шт.

4

5192188

BODY

1шт.

5

87546169

CONTROL VALVE

2шт.

6

87328572

HYD VALVE SECTION

2шт.

87328572R

REMAN-HYD VALVE

PUMA 130, PUMA 145, PUMA 160, ALL (1/11-)

2шт.

87328572C

CORE-VALVE HYD

Return Number

1шт.

7

87381964

QUICK MALE COUPLING

1шт.

8

87381963

QUICK MALE COUPLING

1шт.

9

87381958

QUICK MALE COUPLING

1шт.

10

84175671

VALVE SECTION

1шт.

84175671R

REMAN-HYD VALVE

PUMA 130, PUMA 145, PUMA 160 all (1/11-)

1шт.

84175671C

CORE-VALVE HYD

Return Number

1шт.

11

87730706

CONTROL VALVE

1шт.

87730706R

REMAN-HYD VALVE

PUMA 130, PUMA 145, PUMA 160 ALL (1/11-)

1шт.

87730706C

CORE-VALVE HYD

RETURN NUMBER

1шт.

12

47129475

HEX SOC SCREW,M6 x 50mm

6шт.

13

47129474

HEX SOC SCREW,M6 x 35mm

6шт.

14

5191704

CHECK VALVE

Incl 15

1шт.

15

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
